7TAA122720R0045
Part Number: 7TAA122720R0045
Product Information
Extended Description

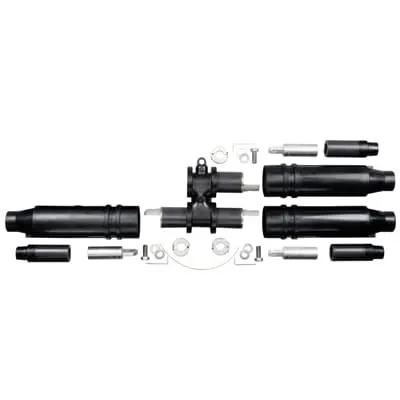

7TAA122720R0045 ABB: 15-25kV 600 Series Deadbreak Separable Wye Joint Package (3-Way) with Test Point, Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300.
UPC
783786383177
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
1 EA
Package Level 1 Width
317.5 mm | 12.5 in
Package Level 1 Height
209.55 mm | 8.25 in
Package Level 1 Depth / Length
431.8 mm | 17 in
Application
Compact Design is suitable for small vaults and manholes.
Brand / Label
Elastimold
Color
Black
Connection Type
Compression
Current Rating
600 A
Effective Date
20030120
Environmental Conditions
All Weatheronditions °C
Includes
(1) 3-Way Bus Bar, (3) Straight Receptacles, (3) SR Size Kits, (2) Lubes of Lubricant and Installation Instructions
Insulation Material
Yes, EPDM Rubber
Material
Housing - EPDM Rubber
Product Name
Terminals, electrical splices and electr ical couplings
Product Type
Deadbreak Separable Wye Joint
Size
Overall Length 37.27 inches x Width 8.12 inches not counting 1 inch Test Point
Special Functions
Fully Shielded, Fully Submersible, 100 Percent Peroxide Cured EPDM Molded Rubber.
Standards
ANSI/IEEE Standard 386
Temperature Range
-40 to +65 °C
Voltage Rating
15 to 25 kV
Data Sheet, Technical Information
K656CY-L0330
UNSPSC
39121421
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4586 >> Electrical connector assembly
