7TAA122720R0091
Part Number: 7TAA122720R0091
Product Information
Extended Description

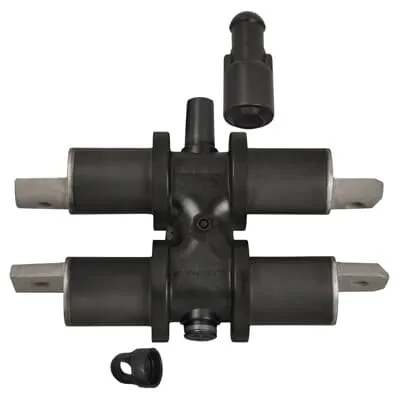

7TAA122720R0091 ABB: 15/25kV, 600 Amp, Separable H Joint (4-Way) with Test Point, Spiking Aid, Cable Insulation 1.180-1.465 inches, Aluminum Compression Lug, Conductor Size 450 Stranded/Compressed, Cold Shrinkable Seal with Copper Rod and Crimp Connector
UPC
75114304955
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
1 EA
Package Level 1 Width
25.4 mm | 1 in
Package Level 1 Height
25.4 mm | 1 in
Package Level 1 Depth / Length
25.4 mm | 1 in
Application
Used to Join Cables in a Disconnectable 4-Way Joint, Suitable for Small Vaults and Manholes Due to its Compact Size
Brand / Label
Elastimold
Color
Black
Connection Type
Compression
Current Rating
600 A
Effective Date
20160518
Environmental Conditions
Fully Submersible
Includes
4-Way Bus Bar, Lubricant, Installation Instructions, Straight Receptacle, Bolts and Washers, Cable Adapter, Retaining Ring and Lug
Insulation Material
Yes, EPDM Rubber
Material
Housing - EPDM Rubber
Product Name
Terminals, electrical splices and electr ical couplings
Product Type
Deadbreak Compact H Joint with Spiking Aid and Seal, Cable Adapter, Retaining Ring and Lug
Special Functions
Includes Integral Capacitive Test Point, Cold Shrinkable Seal with Copper Rod and Crimp Connector
Standards
ANSI/IEEE Standard 386
Voltage Rating
15 to 28 kV
Data Sheet, Technical Information
K656CHSL-L0320-SG1
UNSPSC
39121421
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4586 >> Electrical connector assembly
