7TAA122740R0024
Part Number: 7TAA122740R0024
Product Information
Extended Description
7TAA122740R0024 ABB: 600 Amp, 15/25 kV, Separable H Joint package 4-Way with Test Point, Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.
UPC
783786427857
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
1 EA
Package Level 1 Width
317.5 mm | 12.5 in
Package Level 1 Height
209.55 mm | 8.25 in
Package Level 1 Depth / Length
431.8 mm | 17 in
Application
Compact Design is suitable for Small Vaults and Manholes.
Brand / Label
Elastimold
Color
Black
Connection Type
Compression
Current Rating
600 A
Effective Date
20040503
Environmental Conditions
All Weatheronditions °C
Includes

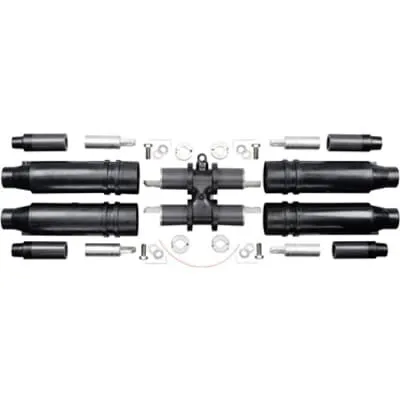

1 4-Way Bus Bar, 2 Tubes Lubricant, 4 Straight Recceptacles, 4 Compression Lugs, 4 Cable Adapters, 4 Adapter Retaining Rings, 4 Bolts/Washers, Insstallation Instructions
Insulation Material
Yes, EPDM Rubber
Material
Housing - EPDM Rubber
Product Name
Terminals, electrical splices and electr ical couplings
Product Type
Deadbreak Separable H-Joint Assembly
Size
Overall Length 37.27 inches, Width 8.12 inches not counting 1 inch Test Point.
Special Functions
Fully Shielded, Fully Submersible, 100 Percent Peroxide Cured EPDM Molded Rubber. Includes Integral Capacitive Test Point. Reusable Components Reduce Inventory and other Costs.
Standards
ANSI/IEEE Standard 386
Temperature Range
-40 to +65 °C
Voltage Rating
15 to 25 kV
Data Sheet, Technical Information
K656CH-N0380
UNSPSC
39121421
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4586 >> Electrical connector assembly
