7TAA269930R2797
Part Number: 7TAA269930R2797
Product Information
Extended Description

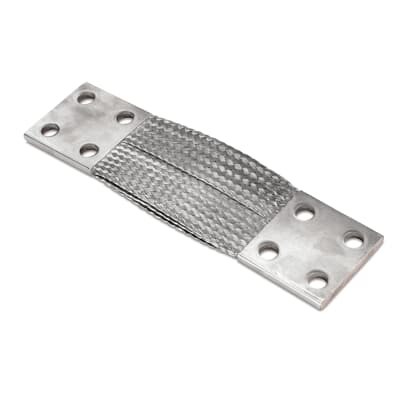

7TAA269930R2797 ABB: 4-Hole NEMA Flexible Jumper Braid - Width 3 inch, Ferrule Length 3 inch, Center to Center Distance Between Holes Pad 1 1-3/4 inch, Pad 2 Center to Center Spacing 1-3/4 inch, Hole1 9/16 inch, Hole2 9/16 inch, Thickness 5/16 inch, Length 28 inches
UPC
783786007639
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
1 EA
Package Level 1 Width
25.4 mm | 1 in
Package Level 1 Height
25.4 mm | 1 in
Package Level 1 Depth / Length
25.4 mm | 1 in
Application
Connect Transformers, Generators or Busbars wherever there is severe vibration or misalignment.
Brand / Label
Boreal
Cable Length
28 in
Conductor Category
Flexible
Conductor Shape
Flat
Effective Date
20100601
Material of Conductor
Tin-Plated Copper
Product Name
Fitted with fittings or made up into art icles
Product Type
Flexible Braid Connector - 4-Hole
Special Functions
4-Hole NEMA Flexible Jumpers. 36 AWG individual wires in braid construction for extra flexibility. 99.9 percent pure copper ferrules on each end provide high conductivity. Individual wires are tinned prior to weaving to deliver maximum protection from corrosion.
Standards
CEI60694, IEEE/ANSI C37.34-1994.
Data Sheet, Technical Information
FBS4H150A1-28
ETIM 7
EC000839 - Braid wire
ETIM 8
EC000839 - Braid wire
UNSPSC
39121465
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4695 >> Flexible braid
