7TAI029500R0002
Part Number: 7TAI029500R0002
Product Information
Extended Description

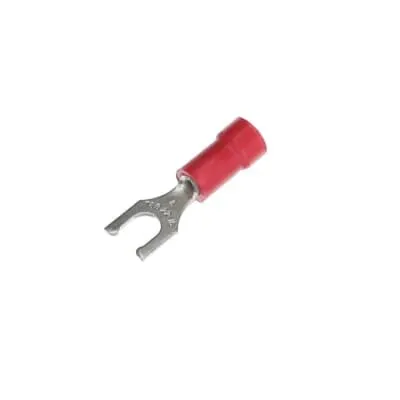

7TAI029500R0002 ABB: Vinyl-Insulated Locking Fork Terminal, Length .97 Inches, Width .29 Inches, Maximum Insulation .150, Bolt Hole #8, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated, 1,000 Pack
EAN
5415022536164
UPC
786210817903
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
1000 EA
Package Level 1 Width
116.84 mm | 4.6 in
Package Level 1 Height
78.74 mm | 3.1 in
Package Level 1 Depth / Length
154.94 mm | 6.1 in
Package Level 2 Units
10000 EA
Package Level 2 Width
241.3 mm | 9.5 in
Package Level 2 Height
171.45 mm | 6.75 in
Package Level 2 Depth / Length
412.75 mm | 16.25 in
Brand / Label
Sta-Kon
Color
Red
Effective Date
19710914
Material
Copper
Product Name
Terminals, electrical splices and electr ical couplings; wafer probers
Product Type
Vinyl Insulated Locking Fork Terminal
Special Functions
Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
Standards
UL E9809
Voltage Rating
600 V
Wire Size
22-16 AWG
Data Sheet, Technical Information
RA2247
ETIM 7
EC001052 - Solderless copper terminals for copper conductors
ETIM 8
EC001052 - Solderless copper terminals for copper conductors
UNSPSC
39121432
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4603 >> Electrical terminals
