7TAI029500R0018
Part Number: 7TAI029500R0018
Product Information
Extended Description

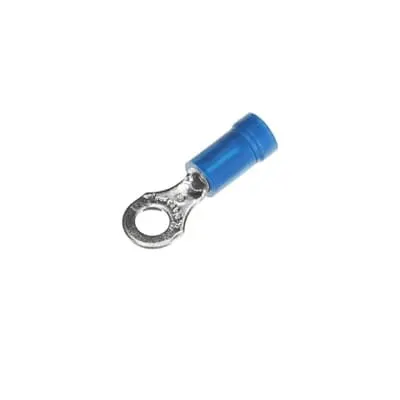

7TAI029500R0018 ABB: Vinyl Insulated Ring Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .170, Bolt Hole #8, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated, 1,000 Pack
EAN
5414363158806
UPC
786210818757
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
1000 EA
Package Level 1 Width
116.84 mm | 4.6 in
Package Level 1 Height
78.74 mm | 3.1 in
Package Level 1 Depth / Length
154.94 mm | 6.1 in
Package Level 2 Units
10000 EA
Package Level 2 Width
170.18 mm | 6.7 in
Package Level 2 Height
248.92 mm | 9.8 in
Package Level 2 Depth / Length
426.466 mm | 16.79 in
Brand / Label
Sta-Kon
Color
Blue
Effective Date
19750815
Material
Copper
Product Name
Terminals, electrical splices and electr ical couplings; wafer probers
Product Type
Vinyl Insulated Ring Terminal
RoHS Date
9AKK107992A8991
Special Functions
These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wires flex point. Brazed seam barrel is serrated to obtain high pull-out value.
Standards
UL E9809
Voltage Rating
600 V
Wire Size
18-14 AWG
Data Sheet, Technical Information
RB867
ETIM 7
EC001052 - Solderless copper terminals for copper conductors
ETIM 8
EC001052 - Solderless copper terminals for copper conductors
UNSPSC
39121432
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4603 >> Electrical terminals
