7TAI029510R0044
Part Number: 7TAI029510R0044
Product Information
Extended Description

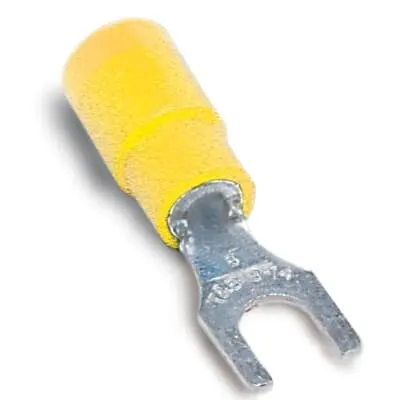

7TAI029510R0044 ABB: Expanded Vinyl Insulated Fork Terminal, Length 1.11 Inches, Width .38 Inches, Maximum Insulation .250, Bolt Hole #10, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated, 500 Pack
UPC
786210820316
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
500 EA
Package Level 1 Width
116.84 mm | 4.6 in
Package Level 1 Height
78.74 mm | 3.1 in
Package Level 1 Depth / Length
154.94 mm | 6.1 in
Package Level 2 Units
5000 EA
Package Level 2 Width
254 mm | 10 in
Package Level 2 Height
195.58 mm | 7.7 in
Package Level 2 Depth / Length
431.8 mm | 17 in
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Brand / Label
Sta-Kon
Color
Yellow
Effective Date
19680510
Material
Copper
Product Name
Terminals, electrical splices and electr ical couplings; wafer probers
Product Type
Vinyl Insulated Fork Terminal
Special Functions
Fork teminals allow easy installation since the mounting screw does not have to be completely removed. These terminals have expanded insulation support which means a wider wire entry to accommodate heavy wall insulation.
Standards
UL E9809
Voltage Rating
600 V
Wire Size
12-10 AWG
Data Sheet, Technical Information
RC1157-250
ETIM 7
EC001052 - Solderless copper terminals for copper conductors
ETIM 8
EC001052 - Solderless copper terminals for copper conductors
UNSPSC
39121432
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4603 >> Electrical terminals
