7TAI029510R0045
Part Number: 7TAI029510R0045
Product Information
Extended Description

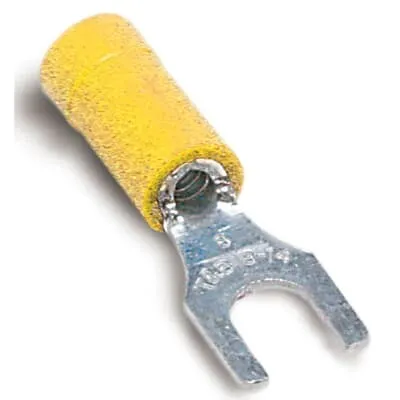

7TAI029510R0045 ABB: Vinyl Insulated Fork Terminal, Length 1.15 Inches, Width .50 Inches, Maximum Insulation .210, Bolt Hole 1/4 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated, 500 Pack
EAN
5414363159186
UPC
786210820330
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
500 EA
Package Level 1 Width
116.84 mm | 4.6 in
Package Level 1 Height
78.74 mm | 3.1 in
Package Level 1 Depth / Length
154.94 mm | 6.1 in
Package Level 2 Units
5000 EA
Package Level 2 Width
254 mm | 10 in
Package Level 2 Height
195.58 mm | 7.7 in
Package Level 2 Depth / Length
431.8 mm | 17 in
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Brand / Label
Sta-Kon
Color
Yellow
Effective Date
19680510
Material
Copper
Product Name
Terminals, electrical splices and electr ical couplings; wafer probers
Product Type
Vinyl Insulated Fork Terminal
Special Functions
These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire¦s flex point. Brazed seam barrel is serrated for high pull-out value. Insulation is color-coded.
Standards
UL E9809
Voltage Rating
600 V
Wire Size
12-10 AWG
Data Sheet, Technical Information
RC1167
ETIM 7
EC001052 - Solderless copper terminals for copper conductors
ETIM 8
EC001052 - Solderless copper terminals for copper conductors
UNSPSC
39121432
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4603 >> Electrical terminals
