7TAI029540R0230
Part Number: 7TAI029540R0230
Product Information
Extended Description

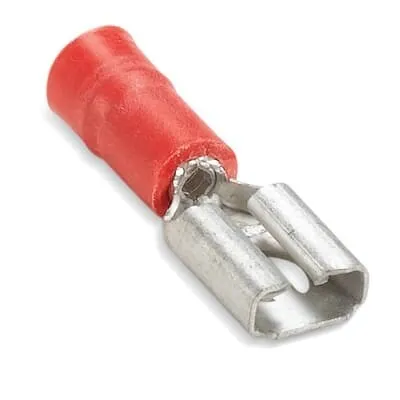

7TAI029540R0230 ABB: Vinyl-Insulated Female Disconnect, Length .96 Inches, Width .29 Inches, Maximum Insulation .150, Tab Size .250x.032, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated, On Mylar Tape, 1,000 Pack
EAN
5414363157748
UPC
786210861562
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
1000 EA
Package Level 1 Width
388.62 mm | 15.3 in
Package Level 1 Height
58.42 mm | 2.3 in
Package Level 1 Depth / Length
388.62 mm | 15.3 in
Package Level 2 Units
5000 EA
Package Level 2 Width
325.12 mm | 12.8 in
Package Level 2 Height
406.4 mm | 16 in
Package Level 2 Depth / Length
403.86 mm | 15.9 in
Brand / Label
Sta-Kon
Color
Red
Effective Date
19750325
Insulation Material
Vinyl
Material
Copper
Product Name
Terminals, electrical splices and electr ical couplings; wafer probers
Product Type
Vinyl Insulated Female Disconnect
Special Functions
Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength.
Standards
UL E66716
Surface Finishing
Tin Plated
Data Sheet, Technical Information
RA257M
ETIM 7
EC000516 - Round or flat plug/receptacle
ETIM 8
EC000516 - Round or flat plug/receptacle
UNSPSC
39121447
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4667 >> Wire terminal disconnect
