7TAI029540R0248
Part Number: 7TAI029540R0248
Product Information
Extended Description

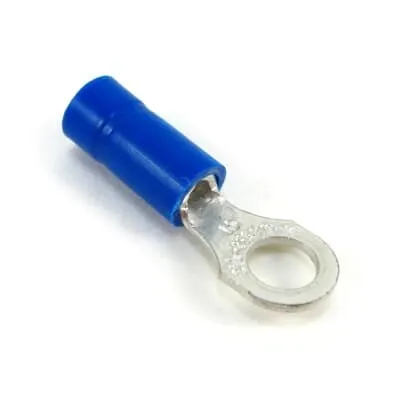

7TAI029540R0248 ABB: Vinyl Insulated Ring Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .170, Bolt Hole #10, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated, On Mylar Tape, 1,000 Pack
UPC
786210862477
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
1000 EA
Package Level 1 Width
60.96 mm | 2.4 in
Package Level 1 Height
388.62 mm | 15.3 in
Package Level 1 Depth / Length
391.16 mm | 15.4 in
Package Level 2 Units
5000 EA
Package Level 2 Width
383.54 mm | 15.1 in
Package Level 2 Height
403.86 mm | 15.9 in
Package Level 2 Depth / Length
396.24 mm | 15.6 in
Application
Wiring terminations or connections for applications such as wiring harness, panelboard, telecommunications, and automotive.
Brand / Label
Sta-Kon
Color
Blue
Effective Date
19750325
Material
Copper
Product Name
Terminals, electrical splices and electr ical couplings; wafer probers
Product Type
Vinyl Insulated Ring Terminal
Special Functions
These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wires flex point. Brazed seam barrel is serrated to obtain high pull-out value.
Standards
UL E9809
Voltage Rating
600 V
Wire Size
18-14 AWG
Data Sheet, Technical Information
RB877M
ETIM 7
EC001052 - Solderless copper terminals for copper conductors
ETIM 8
EC001052 - Solderless copper terminals for copper conductors
UNSPSC
39121432
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4603 >> Electrical terminals
