7TAI029690R0010
Part Number: 7TAI029690R0010
Product Information
Extended Description

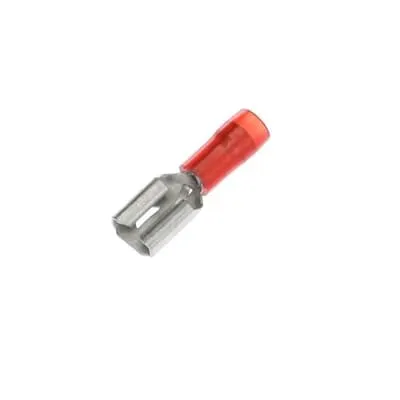

7TAI029690R0010 ABB: Nylon Insulated Female Disconnect, Length .91 Inches, Width .29 Inches, Maximum Insulation .136, Tab Size .250x.032, Wire Range #22-#18, Color Red, Copper, Tin Plated
EAN
5414363135135
UPC
786210874197
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
100 EA
Package Level 1 Width
33.02 mm | 1.3 in
Package Level 1 Height
88.9 mm | 3.5 in
Package Level 1 Depth / Length
63.5 mm | 2.5 in
Package Level 2 Units
500 EA
Package Level 2 Width
264.16 mm | 10.4 in
Package Level 2 Height
210.82 mm | 8.3 in
Package Level 2 Depth / Length
314.96 mm | 12.4 in
Package Level 3 Units
5000 EA
Package Level 3 Width
256.54 mm | 10.1 in
Package Level 3 Height
203.2 mm | 8 in
Package Level 3 Depth / Length
309.88 mm | 12.2 in
Brand / Label
Sta-Kon
Color
Red
Effective Date
19750203
Insulation Material
Nylon/Polyamide
Material
Brass
Product Name
Terminals, electrical splices and electr ical couplings; wafer probers
Product Type
Nylon Insulated Female Disconnect
Special Functions
Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength.
Standards
UL E66716
Surface Finishing
Tin Plated
Data Sheet, Technical Information
RA18-250F
ETIM 7
EC000516 - Round or flat plug/receptacle
ETIM 8
EC000516 - Round or flat plug/receptacle
UNSPSC
39121447
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4667 >> Wire terminal disconnect
