7TAI029700R0029
Part Number: 7TAI029700R0029
Product Information
Extended Description

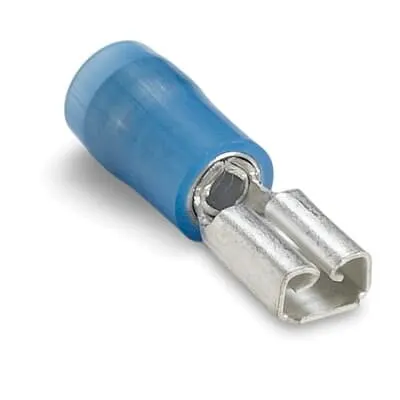

7TAI029700R0029 ABB: Nylon Insulated Female Disconnect, Length .83 Inches, Width .23 Inches, Maximum Insulation .163, Tab Size .187x.032, Wire Range #16-#14 AWG, Color Blue, Brass, Tin Plated
EAN
5414363933632
UPC
786210816524
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
100 EA
Package Level 1 Width
33.02 mm | 1.3 in
Package Level 1 Height
88.9 mm | 3.5 in
Package Level 1 Depth / Length
63.5 mm | 2.5 in
Package Level 2 Units
500 EA
Package Level 2 Width
261.62 mm | 10.3 in
Package Level 2 Height
208.28 mm | 8.2 in
Package Level 2 Depth / Length
309.88 mm | 12.2 in
Package Level 3 Units
5000 EA
Package Level 3 Width
256.54 mm | 10.1 in
Package Level 3 Height
203.2 mm | 8 in
Package Level 3 Depth / Length
309.88 mm | 12.2 in
Brand / Label
Sta-Kon
Color
Blue
Effective Date
19830112
Insulation Material
Nylon/Polyamide
Material
Brass
Product Name
Terminals, electrical splices and electr ical couplings; wafer probers
Product Type
Nylon Insulated Female Disconnect
Special Functions
Quick, reliable method of connection to terminal blocks and boards without the use of tools. Unique construction of the female disconnect offers long-term dependability.
Standards
UL E66716
Surface Finishing
Tin Plated
Data Sheet, Technical Information
RBD14-183
ETIM 7
EC000516 - Round or flat plug/receptacle
ETIM 8
EC000516 - Round or flat plug/receptacle
UNSPSC
39121447
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4667 >> Wire terminal disconnect
