7TAI029750R0038
Part Number: 7TAI029750R0038
Product Information
Extended Description

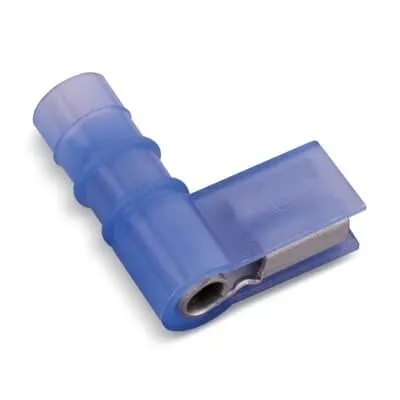

7TAI029750R0038 ABB: Nylon Fully Insulated 90 Degree Flag Female Disconnect, Length .74 Inches, Width .61 Inches, Maximum Insulation .150, Tab Size .187x.032, Wire Range #16-#14 AWG, Color Blue, Copper, Tin Plated, 1,000 Pack
EAN
5414363933625
UPC
786210379784
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
500 EA
Package Level 1 Width
11684 mm | 460 in
Package Level 1 Height
7874 mm | 310 in
Package Level 1 Depth / Length
15494 mm | 610 in
Package Level 2 Units
5000 EA
Package Level 2 Width
254 mm | 10 in
Package Level 2 Height
195.58 mm | 7.7 in
Package Level 2 Depth / Length
4318 mm | 170 in
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Brand / Label
Sta-Kon
Color
Blue
Effective Date
19990916
Insulation Material
Nylon/Polyamide
Material
Brass
Product Name
Terminals, electrical splices and electr ical couplings; wafer probers
Product Type
Nylon Fully Insulated 90 Degree Flag Female Disconnect
Special Functions
Quick, reliable method of connection to terminal blocks and boards without the use of tools. Unique construction of the female disconnect offers long-term dependability.
Standards
UL E66716
Surface Finishing
Tin Plated
Voltage Rating
600 V
Wire Size
16-14 AWG
Data Sheet, Technical Information
RBD1877F
ETIM 7
EC000516 - Round or flat plug/receptacle
ETIM 8
EC000516 - Round or flat plug/receptacle
UNSPSC
39121447
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4667 >> Wire terminal disconnect
