7TAI029810R0006
Part Number: 7TAI029810R0006
Product Information
Extended Description

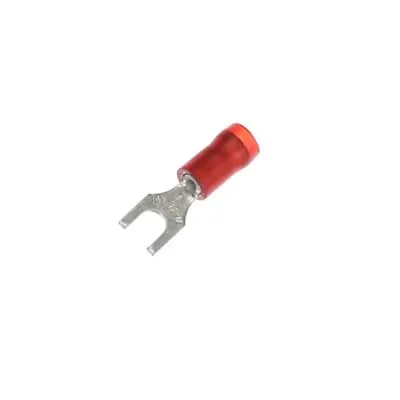

7TAI029810R0006 ABB: Nylon Insulated Fork Terminal, Length .83 Inches, Width .25 Inches, Maximum Insulation .136, Bolt Hole #6, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated
EAN
5414363934219
UPC
786210803869
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
100 EA
Package Level 1 Width
27.94 mm | 1.1 in
Package Level 1 Height
76.2 mm | 3 in
Package Level 1 Depth / Length
53.086 mm | 2.09 in
Package Level 2 Units
500 EA
Package Level 2 Width
241.3 mm | 9.5 in
Package Level 2 Height
228.6 mm | 9 in
Package Level 2 Depth / Length
381 mm | 15 in
Package Level 3 Units
5000 EA
Package Level 3 Width
180.34 mm | 7.1 in
Package Level 3 Height
231.14 mm | 9.1 in
Package Level 3 Depth / Length
271.78 mm | 10.7 in
Brand / Label
Sta-Kon
Color
Red
Effective Date
19750108
Material
Copper
Product Name
Terminals, electrical splices and electr ical couplings; wafer probers
Product Type
Nylon Insulated Fork Terminal
Special Functions
Inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep. Nylon jacket is color-coded.
Standards
UL E9809
Voltage Rating
600 V
Wire Size
22-16 AWG
Data Sheet, Technical Information
RA18-6F
ETIM 7
EC001052 - Solderless copper terminals for copper conductors
ETIM 8
EC001052 - Solderless copper terminals for copper conductors
UNSPSC
39121432
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4603 >> Electrical terminals
