7TAI029820R0039
Part Number: 7TAI029820R0039
Product Information
Extended Description

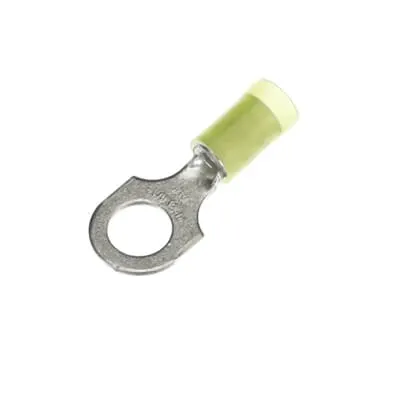

7TAI029820R0039 ABB: Nylon Insulated Ring Terminal, Length 1.21 Inches, Width .53 Inches, Maximum Insulation .210, Bolt Hole 5/16 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated
EAN
5414363159131
UPC
786210804477
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
50 EA
Package Level 1 Width
33.02 mm | 1.3 in
Package Level 1 Height
88.9 mm | 3.5 in
Package Level 1 Depth / Length
63.5 mm | 2.5 in
Package Level 2 Units
250 EA
Package Level 2 Width
260.35 mm | 10.25 in
Package Level 2 Height
198.12 mm | 7.8 in
Package Level 2 Depth / Length
312.42 mm | 12.3 in
Package Level 3 Units
2500 EA
Package Level 3 Width
205.74 mm | 8.1 in
Package Level 3 Height
256.54 mm | 10.1 in
Package Level 3 Depth / Length
312.42 mm | 12.3 in
Brand / Label
Sta-Kon
Color
Yellow
Effective Date
19751006
Material
Copper
Product Name
Terminals, electrical splices and electr ical couplings; wafer probers
Product Type
Nylon Insulated Ring Terminal
Special Functions
Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.
Standards
UL E9809
Voltage Rating
600 V
Wire Size
12-10 AWG
Data Sheet, Technical Information
RC10-516
ETIM 7
EC001052 - Solderless copper terminals for copper conductors
ETIM 8
EC001052 - Solderless copper terminals for copper conductors
UNSPSC
39121432
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4603 >> Electrical terminals
