7TAI029860R0004
Part Number: 7TAI029860R0004
Product Information
Extended Description

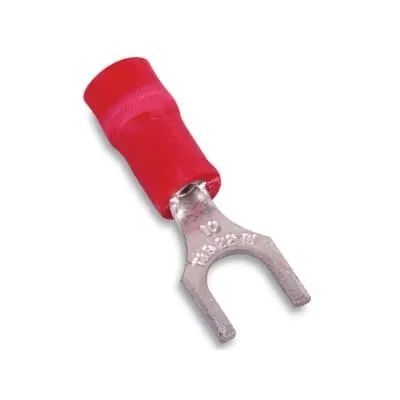

7TAI029860R0004 ABB: Nylon Insulated Fork Terminal, Length 0.83 Inch, Width 0.25 Inch, Max Insulation 0.136, Bolt Hole #10, Wire Range #22-16 AWG, Color Red, Copper, Tin Plated
UPC
786210817644
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
1000 EA
Package Level 1 Width
114.3 mm | 4.5 in
Package Level 1 Height
76.2 mm | 3 in
Package Level 1 Depth / Length
152.4 mm | 6 in
Package Level 2 Units
5000 EA
Package Level 2 Width
121.92 mm | 4.8 in
Package Level 2 Height
88.9 mm | 3.5 in
Package Level 2 Depth / Length
157.48 mm | 6.2 in
Brand / Label
Sta-Kon
Color
Red
Effective Date
19750108
Material
Copper
Product Name
Terminals, electrical splices and electr ical couplings; wafer probers
Product Type
Nylon Insulated Fork Terminal
Special Functions
Inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep. Nylon jacket is color-coded.
Standards
UL E9809
Voltage Rating
600 V
Wire Size
22-16 AWG
Data Sheet, Technical Information
RA1153
ETIM 7
EC001052 - Solderless copper terminals for copper conductors
ETIM 8
EC001052 - Solderless copper terminals for copper conductors
UNSPSC
39121432
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4603 >> Electrical terminals
