7TAI029860R0047
Part Number: 7TAI029860R0047
Product Information
Extended Description

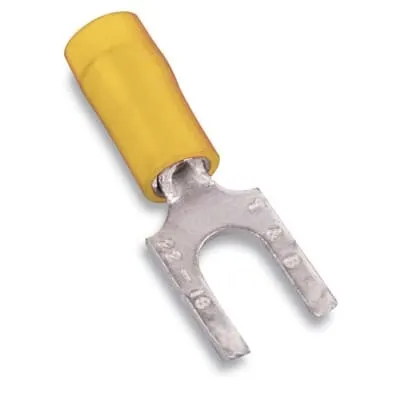

7TAI029860R0047 ABB: Nylon Insulated Fork Terminal with Flanged Tongue, Length 1.00 Inches, Width .38 Inches, Maximum Insulation .210, Bolt Hole #10, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated, 500 Pack
EAN
5414363159209
UPC
786210820378
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
500 EA
Package Level 1 Width
116.84 mm | 4.6 in
Package Level 1 Height
78.74 mm | 3.1 in
Package Level 1 Depth / Length
154.94 mm | 6.1 in
Package Level 2 Units
5000 EA
Package Level 2 Width
248.92 mm | 9.8 in
Package Level 2 Height
172.72 mm | 6.8 in
Package Level 2 Depth / Length
403.86 mm | 15.9 in
Brand / Label
Sta-Kon
Color
Yellow
Effective Date
19671122
Material
Copper
Product Name
Terminals, electrical splices and electr ical couplings; wafer probers
Product Type
Nylon Insulated Flanged Fork Terminal
Special Functions
Fork terminals allow easy installation because screw needs only to be loosened. A flanged-tongue fork with turned up tips provide fo extra holding protection.
Standards
UL E9809
Voltage Rating
600 V
Wire Size
12-10 AWG
Data Sheet, Technical Information
RC1253
ETIM 7
EC001052 - Solderless copper terminals for copper conductors
ETIM 8
EC001052 - Solderless copper terminals for copper conductors
UNSPSC
39121432
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4603 >> Electrical terminals
