7TAI029870R0021
Part Number: 7TAI029870R0021
Product Information
Extended Description

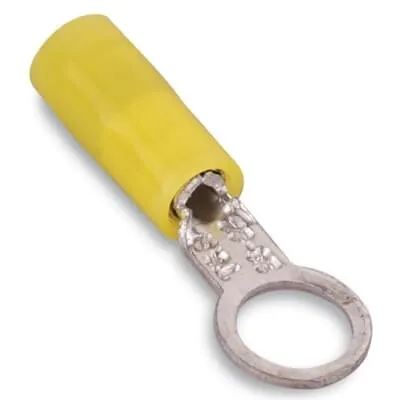

7TAI029870R0021 ABB: Nylon Insulated Ring Terminal, Length .66 Inches, Width .14 Inches, Maximum Insulation .125, Bolt Hole #2, Wire Range #26-#24 AWG, Color Yellow, Copper, Tin Plated
EAN
5414363934011
UPC
786210817996
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
1000 EA
Package Level 1 Width
116.84 mm | 4.6 in
Package Level 1 Height
78.74 mm | 3.1 in
Package Level 1 Depth / Length
154.94 mm | 6.1 in
Package Level 2 Units
10000 EA
Package Level 2 Width
254 mm | 10 in
Package Level 2 Height
195.58 mm | 7.7 in
Package Level 2 Depth / Length
431.8 mm | 17 in
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Brand / Label
Sta-Kon
Color
Yellow
Effective Date
19670713
Material
Copper
Product Name
Terminals, electrical splices and electr ical couplings; wafer probers
Product Type
Nylon Insulated Ring Terminal
Special Functions
Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.
Voltage Rating
600 V
Wire Size
26-24 AWG
Data Sheet, Technical Information
RAX23
ETIM 7
EC001052 - Solderless copper terminals for copper conductors
ETIM 8
EC001052 - Solderless copper terminals for copper conductors
UNSPSC
39121432
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4603 >> Electrical terminals
