7TAI029900R0002
Part Number: 7TAI029900R0002
Product Information
Extended Description

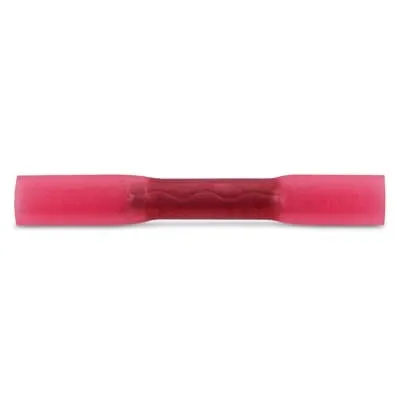

7TAI029900R0002 ABB: Heat Shrinkable Butt Splice, Length 1.50 Inches, Width .25 Inches, Maximum Insulation Diameter .170, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated, 500 Pack
UPC
786210223896
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
500 EA
Package Level 1 Width
127 mm | 5 in
Package Level 1 Height
101.6 mm | 4 in
Package Level 1 Depth / Length
152.4 mm | 6 in
Package Level 2 Units
2500 EA
Package Level 2 Width
160.02 mm | 6.3 in
Package Level 2 Height
114.3 mm | 4.5 in
Package Level 2 Depth / Length
670.56 mm | 26.4 in
Brand / Label
Sta-Kon
Color
Red
Effective Date
19950116
Material
Copper
Product Name
Terminals, electrical splices and electr ical couplings; wafer probers
Product Type
Heat Shrinkable Butt Splice
Special Functions
Self-insulated with heat-shrinkable polyolefin and internally coated sealant. Upon completed installation, a fully sealed connection is achieved to protect the joint against the degrading effects of galvanic action, corrosion, and environmental exposure.
Standards
UL E9809
Surface Finishing
Electro -Tin Plated
Temperature Range
150 °C
Voltage Rating
600 V
Data Sheet, Technical Information
RAAS22X
ETIM 7
EC001059 - Crimp splices for copper conductor
ETIM 8
EC001059 - Crimp splices for copper conductor
UNSPSC
39121449
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4669 >> Wire or cable compression splice
