7TBA001500R0057
Part Number: 7TBA001500R0057
Product Information
Extended Description

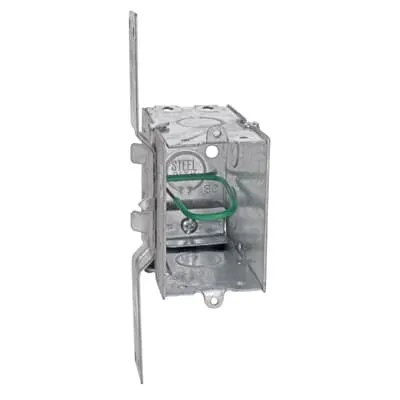

7TBA001500R0057 ABB: Gangable Switch Box, 18 Cubic Inches, 3 Inches Long x 2 Inches Wide x 3-1/2 Inches Deep, 1/2 Inch Knockouts, Pre-Galvanized Steel, Non-Metallic Cable Clamps (C-5), 10-1/2 Inch #12 AWG Solid Pigtail, and CV Bracket 7/8 Inches, For use with Non-Metallic Sheathed Cable
UPC
785991026962
Country of Origin
Canada (CA)
Selling Unit of Measure
each
Package Level 1 Units
25 EA
Package Level 1 Width
285.75 mm | 11.25 in
Package Level 1 Height
146.05 mm | 5.75 in
Package Level 1 Depth / Length
495.3 mm | 19.5 in
Package Level 2 Units
1400 EA
Package Level 2 Width
0 mm | 0 in
Package Level 2 Height
0 mm | 0 in
Package Level 2 Depth / Length
0 mm | 0 in
Brand / Label
EFab
Cable Entry Position
Knockouts
Color
Gray
Effective Date
20020605
Material
Steel
Mounting Type
Bracket
Product Name
Other
Product Type
eFab
Sub Brand / Label
Steel City
Volume
18 in³
Data Sheet, Technical Information
CXWVP
ETIM 7
EC000080 - Surface mounted housing for flush mounted switching device
ETIM 8
EC000080 - Surface mounted housing for flush mounted switching device
UNSPSC
39121309
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4439 >> Specialty electrical boxes
