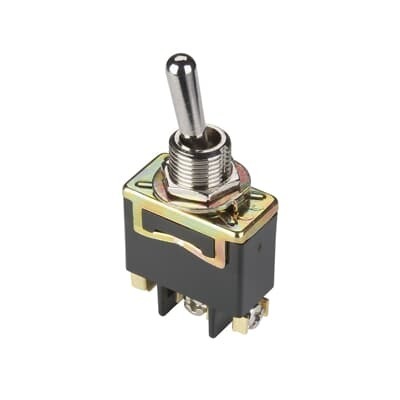

ABB 7TBA008940R0109 Toggle Switch - 1P2T On-Off-On Function
Part Number: 7TBA008940R0109
Quick Summary
ABB 7TBA008940R0109 Toggle Switch is a single pole/double throw control designed for industrial panels and machine control. It delivers clear On-Off-On switching, helping operators manage critical equipment with confidence in tight control cabinets. While rated to 15A at 125VAC and 10A at 250VAC, verify the exact load in your application and enclosure environment. This device aligns with common safety and quality practices in automation, with the SWTG12-OFO datasheet referenced for technical guidance and UNSPSC 39121409 for procurement classification. When sourcing ABB toggles, you gain dependable mechanical life, Taiwan-based manufacturing consistency, and straightforward compatibility with ABB and third-party components. The packaging supports bulk shipments (4 units per container) to streamline stocking and maintenance planning.
Product Information
Extended Description
7TBA008940R0109 ABB: Single Pole/Double Throw Toggle Switch, On-Off-On Function, Rated 15A-125VAC Max/10A-250VAC Max, Black
UPC
67396014424
Country of Origin
Taiwan (Chinese Taipei)
Selling Unit of Measure
each
Package Level 1 Units
4 EA
Package Level 1 Width
112.776 mm | 4.44 in
Package Level 1 Height
123.952 mm | 4.88 in
Package Level 1 Depth / Length
134.874 mm | 5.31 in
Package Level 2 Units
1620 EA
Package Level 2 Width
1016 mm | 40 in
Package Level 2 Height
746.76 mm | 29.4 in
Package Level 2 Depth / Length
1219.2 mm | 48 in
Effective Date
20040601
Product Name
"SWITCHES, FOR A VOLTAGE NOT EX"
Data Sheet, Technical Information
SWTG12-OFO
UNSPSC
39121409
WEEE Category
Product Not in WEEE Scope
Feature: 1P2T On-Off-On configuration provides versatile control in a compact footprint → Business Impact: reduces panel space requirements while enabling precise selection between two circuits and an OFF position, improving reliability in machine control applications → Application: ideal for control cabinets in automation lines where space is at a premium and clear state indication is critical. Feature: Electrical ratings of 15A at 125VAC max and 10A at 250VAC max → Business Impact: supports common load profiles in motors, actuators, and lighting without oversizing components → Application: suitable for panel power switching and equipment control across factory automation environments. Feature: Black actuator finish and robust construction → Business Impact: enhances visibility in dim environments and resists wear in frequent cycling → Application: suitable for harsh manufacturing floors and rugged control panels, reducing replacement frequency. Feature: Sourcing and packaging information (UPC, package levels) → Business Impact: improves procurement accuracy and inventory planning, enabling just-in-time stocking for maintenance teams → Application: efficient onboarding for panel assemblers and connector integration in automation projects. Feature: Documentation and standards alignment (Data Sheet SWTG12-OFO, UNSPSC 39121409) → Business Impact: accelerates specification checks and regulatory alignment, streamlining supplier audits → Application: supports design reviews and compliance workflows in engineering teams. Industry insight: ABB toggles in this class are designed to balance durability with ease of installation, offering predictable lifecycle performance and straightforward replacement with minimal panel downtime.
