7TBA022930R0737
Part Number: 7TBA022930R0737
Product Information
Extended Description

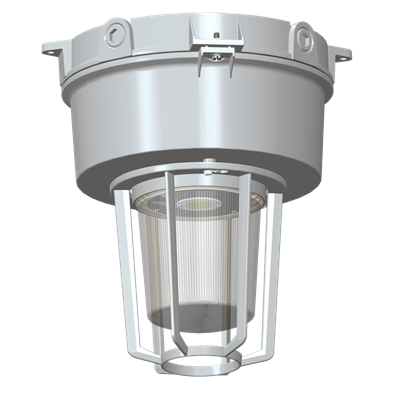

7TBA022930R0737 ABB: Hazlux H3, standard fixture, Lamp Wattage: 74W, electronic LED driver, Lumen Output: 10 500, 120 to 277VAC, Frequency: 50/60 Hz, standard housing with stainless steel inserts, thermal shock-resistant globe, 1-1/2 straight stanchion, UNIPAK with LED light source
Product Main Type
Emergency Lighting
Application
Industrial
Product Type
Fixture
UPC
786607201292
Product Net Height
16-3/4 in
Product Net Depth / Length
14-7/8 in
Product Net Width
13-3/8 in
Product Net Weight
21 lb
Lamp Type
LED
Number of Batteries
0
Ballast Type
Standard Housing with Stainless Steel Insert
Frequency (f)
50/60 Hz
Power Consumption (@Pcons)
88 W
Voltage Rating
120 to 277 V AC
Package Level 1 Units
1 EA
Package Level 1 EAN
0786607201292
Package Level 1 Height
0.254 mm | 0.01 in
Package Level 1 Depth / Length
0.254 mm | 0.01 in
Package Level 1 Width
0.254 mm | 0.01 in
Package Level 1 Gross Weight
21.5 lb
Data Sheet, Technical Information
Hazlux DL Series H3 Catalog sheet
Instructions and Manuals
DL Series H3 Instruction sheet
UNSPSC
39111612
