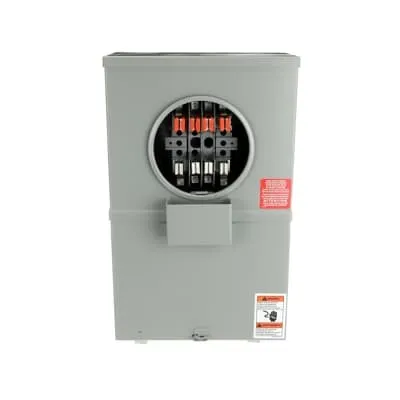

ABB 7TBA050280R0025 Meter Socket Transformer - CSA 27716
Part Number: 7TBA050280R0025
Quick Summary
ABB 7TBA050280R0025 Meter Socket Transformer delivers compact underground service metering with a 20 A rating at 600 V. Installing underground services can be challenging when you need rugged, code-compliant gear that resists tampering and delays. This unit carries CSA 27716 certification, BC Hydro approval, and a tamper-resistant SWL cover, providing safety and regulatory assurance. Designed for reliability in industrial power management and distribution, it supports seamless integration with underground service feeds and standard meter sockets, delivering value for utilities and commercial installations alike.
Product Information
Extended Description
7TBA050280R0025 ABB: Meter socket transformer rated 20 amperes 600 volts. BC Hydro approved with SWL cover with enlarged padlock hole. 8 jaw.
UPC
624871008530
Country of Origin
Canada (CA)
Selling Unit of Measure
each
Package Level 1 Units
1 EA
Package Level 1 Width
137.922 mm | 5.43 in
Package Level 1 Height
485.648 mm | 19.12 in
Package Level 1 Depth / Length
299.974 mm | 11.81 in
Application
For underground service only
Brand / Label
Microlectric
Current Rating
20 A
Effective Date
20121024
Number of Phases
1 Phase
Product Name
Other
Product Type
Meter Sockets
Size
19-1/8 Inches Height x 11-13/16 Inches Width x 5-7/16 Inches Depth
Standards
CSA 27716
Voltage Rating
600 V
Data Sheet, Technical Information
CT108-L
UNSPSC
39121102
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4326 >> Test Block Bypass Meter Sockets
Feature: 20 A current rating. Business Impact: Meets typical underground service loads with reliability, reducing overdesign and wiring complexity. Application: Ideal for single-phase underground service feeds in utilities and facilities. Feature: 600 V voltage rating. Business Impact: Supports graphic distribution networks and equipment ratings, improving protection margins. Application: Suitable for meter socket installations in mid- to high-density power systems. Feature: 1 Phase configuration. Business Impact: Simpler connections, faster installation, and reduced fault exposure. Application: Streamlined integration with single-phase feeders and meter bases. Feature: 8 jaw design. Business Impact: Secure, robust conductor reception minimizes contact resistance and maintenance. Application: High-integrity meter connections in demanding environments. Feature: BC Hydro approval with SWL cover and enlarged padlock hole. Business Impact: Enhanced security and utility compliance, reducing tamper risk and project risk. Application: Underground service installations requiring tamper-resistance. Feature: CSA 27716 certification. Business Impact: Regulatory compliance supports inspection readiness and risk management. Application: Utility-grade meter sockets for critical infrastructure. Feature: Compact size and packaging dimensions. Business Impact: Easier enclosure fit, minimized installation footprint, and efficient logistics. Application: Space-constrained electrical rooms and field deployments. Feature: For underground service only. Business Impact: Eliminates misapplication, improving project accuracy and lifecycle cost. Application: Dedicated underground installations requiring robust, approved equipment.
Get a Quick Quote for a ABB 7TBA050280R0025
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7TBA050280R0025?
Enquire Now
FAQs
Plan for underground service configurations with a 20 A, 600 V rating and 1 phase setup. The unit features BC Hydro approval and a tamper-resistant SWL cover with an enlarged padlock hole, enhancing security on site. Use compatible meter bases and ensure the enclosure meets local code requirements. Check packaging data for exact fit and handling during installation.
The device carries CSA 27716 certification and BC Hydro approval, confirming utility-grade compliance for underground service applications. It is designed for underground use only and includes a tamper-resistant SWL cover. Data sheets CT108-L provide technical details, supporting procurement and reliability assessments for utility and industrial deployments.
Yes, this meter socket transformer is sized for common underground service installations, with 19-1/8 inches in height, 11-13/16 inches in width, and 5-7/16 inches in depth. Packaging dimensions are 137.922 mm wide by 485.648 mm tall by 299.974 mm deep, aiding enclosure fit verification and field layout planning.
The SWL cover includes an enlarged padlock hole to improve tamper resistance, a key security feature for underground installations. Coupled with BC Hydro approval and CSA certification, this design reduces tampering risk and supports safer long-term operation in harsh environments.
The unit originates from Canada (CA) and is labeled Microelectric. It is sold as a single unit (1 EA) with UPC 624871008530. Packaging lists dimensions as 1 EA, plus the package dimensions: width 137.922 mm, height 485.648 mm, and depth 299.974 mm, supporting accurate logistics and stocking.
