ABB 7TBA050280R0029 Meter Sockets - 600 V Type 3R
Part Number: 7TBA050280R0029
Quick Summary
ABB 7TBA050280R0029 Meter Sockets deliver a 20 A, 600 V transformer ideal for underground service installations. Field wiring reliability and safe lockout can delay projects and raise safety risk in outdoor environments. CSA 27716 certification and a Weatherproof Type 3R enclosure support safe, durable outdoor use, with WEEE status confirming proper disposal. This combination reduces commissioning time, improves regulatory compliance, and simplifies procurement for utilities and industrial facilities seeking rugged, code-compliant metering solutions. The unit's 1-phase design and factory prewired configuration streamline installation while maintaining compatibility with standard meter gear and Microlectric labeling for clear field identification.
Product Information
Extended Description

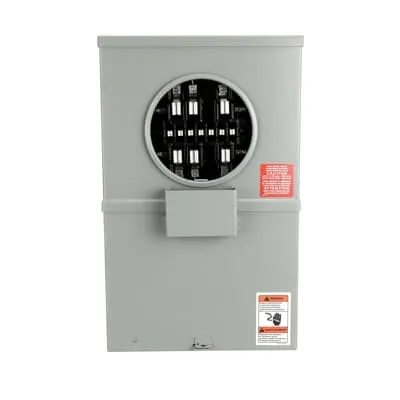

7TBA050280R0029 ABB: Meter socket transformer rated 20 amperes 600 volts. 13 jaw. Factory prewired unit with lockout device on bottom door.
UPC
624871002477
Country of Origin
Canada (CA)
Selling Unit of Measure
each
Package Level 1 Units
1 EA
Package Level 1 Width
25.4 mm | 1 in
Package Level 1 Height
25.4 mm | 1 in
Package Level 1 Depth / Length
25.4 mm | 1 in
Package Level 2 Units
30 EA
Package Level 2 Width
0 mm | 0 in
Package Level 2 Height
0 mm | 0 in
Package Level 2 Depth / Length
0 mm | 0 in
Application
For underground service only
Brand / Label
Microlectric
Current Rating
20 A
Effective Date
19990127
Enclosure Type
Weatherproof Type 3R
Number of Phases
1 Phase
Product Name
Other
Product Type
Meter Sockets
Size
19-1/8 Inches Height x 11-13/16 Inches Width x 5-7/16 Inches Depth
Standards
CSA 27716
Voltage Rating
600 V
Data Sheet, Technical Information
CT113-SWL
UNSPSC
39121102
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4326 >> Test Block Bypass Meter Sockets
Factory prewired meter socket with a bottom-door lockout enables faster commissioning and reduces on-site wiring errors, translating to safer energization in underground service work. The 20 A, 600 V current and voltage rating supports standard underground feeder loads without upsizing equipment, lowering material costs and labor time. A Weatherproof Type 3R enclosure provides outdoor durability against moisture and temperature fluctuations, minimizing downtime and corrosion risk. The 13 jaw design and single-phase configuration broaden metering-gear compatibility and simplify retrofits with established meter stacks. CSA 27716 certification and WEEE compliance ensure regulatory alignment and responsible end-of-life handling, reducing audit risk and disposal costs. Compact dimensions and packaging information (19-1/8 in H x 11-13/16 in W x 5-7/16 in D) support fit in standard enclosures and scalable logistics, improving planning and field deployment.
