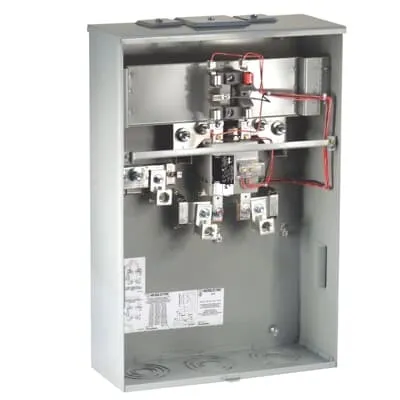

ABB 7TBA050280R0034 Meter Sockets - CSA 27716
Part Number: 7TBA050280R0034
Quick Summary
Meter sockets by ABB provide reliable meter connections for overhead and underground power installations. Maintenance downtime and unsafe terminations in field installs are common challenges that this design helps mitigate. It aligns with CSA 27716 standards, supports 120/240 V operation, and comes in a weatherproof Type 3R enclosure for reliable outdoor service. For procurement teams and installers, this unit delivers durable performance, simpler spares planning, and a clear path to compliant, cost-efficient project execution.
Product Information
Extended Description
7TBA050280R0034 ABB: JS4 underground 300A to 5 ratio current transformer.
EAN
0624871025148
UPC
624871025148
Replacement Product ID (NEW)
7TBA050280R0067
Country of Origin
Canada (CA)
Selling Unit of Measure
each
Package Level 1 Units
1 piece
Package Level 1 Width
9.5 in | 241 mm
Package Level 1 Height
21 in | 533 mm
Package Level 1 Depth / Length
31 in | 787 mm
Application
For overhead/underground installation
Brand / Label
Microlectric
Current Rating
400 A
Effective Date
19961217
Enclosure Type
Weatherproof Type 3R
Number of Phases
1 Phase
Product Name
METER SOCKETS
Product Type
Meter Sockets
Standards
CSA 27716
Voltage Rating
120/240 V
Data Sheet, Technical Information
JS4A-300/5
UNSPSC
39121102
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4326 >> Test Block Bypass Meter Sockets
Weatherproof Type 3R enclosure protects meter connections from rain, dust, and freezing conditions, extending service life and lowering maintenance costs while reducing corrosion-related failures in outdoor environments. This resilience translates to fewer field service calls and shorter downtime during outages or upgrades in both overhead and underground installations. The 120/240 V single-phase rating simplifies wiring schemes and accelerates commissioning, helping projects meet tight schedules without compromising safety or compliance. With CSA 27716 alignment, installers gain confidence that wiring practices and component performance meet rigorous Canadian standards, reducing regulatory risks and ensuring smoother inspections. A 400 A current rating provides headroom for peak loads, supporting future growth and minimizing the need for costly rework as demand expands. Easy upgrade via the replacement product ID 7TBA050280R0067 supports lifecycle management and inventory planning. Packaging of one piece per box, with defined dimensions, streamlines logistics and field deployment across diverse job sites.
Get a Quick Quote for a ABB 7TBA050280R0034
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7TBA050280R0034?
Enquire Now
FAQs
This ABB meter socket is designed for both overhead and underground installations, featuring a weatherproof Type 3R enclosure suitable for outdoor use. Its 120/240 V single-phase rating and CSA 27716 compliance make it appropriate for residential, commercial, and light industrial applications, ensuring safe, durable connections in varied climate conditions.
Key specs include 400 A current rating, 120/240 V voltage rating, and 1 phase operation. The enclosure is weatherproof Type 3R, supporting outdoor mounting. Certification includes CSA 27716, with origin in Canada. The unit is shipped as 1 piece per package, designed for straightforward installation and reliable long-term service.
Yes. The product provides a Replacement Product ID of 7TBA050280R0067, facilitating upgrading or lifecycle management. Before replacing, verify compatibility with your meter mounting, enclosure space, and wiring topology. This pathway supports standardized spares planning and reduces the risk of mismatched components during replacement projects.
The unit complies with CSA 27716, aligning with Canadian electrical standards for meter sockets. It is designed for 120/240 V operation and features a weatherproof Type 3R enclosure to meet outdoor installation requirements. Additional classifications such as UNSPSC 39121102 and IGCC 4326>>Test Block Bypass Meter Sockets reference are noted for procurement and classification purposes.
Upgrading to this ABB meter socket offers improved reliability through a weatherproof 3R enclosure and robust 400 A rating, reducing field faults and downtime. The CSA 27716 compliance accelerates inspections, while lifecycle considerations like the replacement ID support easy upgrades and inventory planning, contributing to lower total cost of ownership and faster project throughput.
