ABB 7TBA050290R0367 Isolated Neutral Kit - CSA
Part Number: 7TBA050290R0367
Quick Summary
Isolated Neutral Kit safely converts neutrals for multi-gang meter sockets, enabling reliable ABB metering installations. Line crews often struggle with misreadings and insulation faults when neutral paths aren’t properly isolated, leading to service delays. This kit aligns with CSA standards for meter equipment and is documented in the IN4000-6 data sheet to support compliant field deployments. Designed for North American power management workflows, it accommodates up to 400 A systems and the JS4 meter socket Series, delivering repeatable, install-ready performance. By providing six insulation blocks in a compact, single-package solution, it reduces field modification time and risk, while improving measurement integrity across critical metering applications.
Product Information
Extended Description

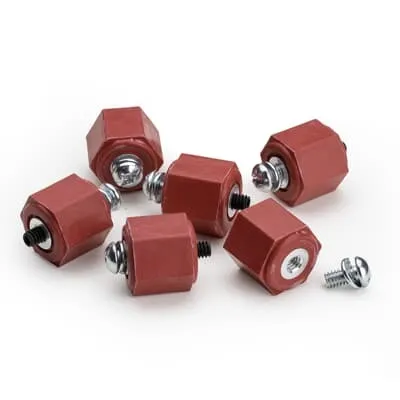

7TBA050290R0367 ABB: Insulated Neutral Conversion Kit for Multi-Gang Sockets, Contains 6 Insulation Blocks
UPC
624871012827
Country of Origin
Canada (CA)
Selling Unit of Measure
each
Package Level 1 Units
1 EA
Package Level 1 Width
104.902 mm | 4.13 in
Package Level 1 Height
162.052 mm | 6.38 in
Package Level 1 Depth / Length
158.75 mm | 6.25 in
Application
For JS4 meter socket Series
Brand / Label
Microlectric
Current Rating
400 A
Effective Date
20190826
Product Main Type
METERING EQUIPMENT
Product Name
Other
Product Type
Neutral Kits
Standards
CSA
Data Sheet, Technical Information
IN4000-6
UNSPSC
39121721
IDEA Granular Category Code (IGCC)
5069 >> Electrical insulators
Feature: Insulated neutral path blocks provide six insulation blocks for secure neutral separation. Business Impact: Reduces arc risk and miswiring in multi-gang sockets, enabling safer installations and fewer field callbacks. Application: Ideal for JS4 meter socket Series installations in 400 A metering schemes, supporting fast commissioning. Feature: Single-kit packaging with six insulation blocks simplifies procurement and on-site handling. Business Impact: Lowers labor time and inventory complexity, accelerating project timelines. Application: Useful in modular meter socket configurations where quick neutral conversions are needed. Feature: 400 A current rating supports high-load metering and distribution panels. Business Impact: Ensures compliance with heavy-current applications and reduces the need for mid-project upgrades. Application: Power management and metering equipment deployments. Feature: CSA standard compliance and IN4000-6 data sheet provide regulatory alignment. Business Impact: Improves audit readiness and reduces compliance risks. Application: North American utilities and contractor projects. Feature: 1 EA package dimensions (104.902 mm width, 162.052 mm height, 158.75 mm depth) enable predictable enclosure fit. Business Impact: Minimizes rework and enclosure modification. Application: Site procurement and installation planning.
Get a Quick Quote for a ABB 7TBA050290R0367
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7TBA050290R0367?
Enquire Now
FAQs
Install the kit by aligning the six insulation blocks with the neutral path in the multi-gang socket, ensuring tight, uniform seating. Confirm one kit per meter socket assembly and verify compatibility with JS4 configurations before energizing. Use the IN4000-6 data sheet as a reference for installation torque, clearance, and safety precautions to maintain CSA compliance throughout commissioning.
The kit delivers a dedicated insulated neutral path suitable for up to 400 A service currents, reducing neutral-related arcing and misreads. It supports reliable metering measurements in high-load environments and accelerates commissioning by providing a ready-to-install, certified solution for multi-gang sockets in ABB-powered systems.
Yes. The kit is CSA-aligned and documented for meter equipment use, with Country of Origin listed as Canada (CA). It references the IN4000-6 data sheet and CSA standards, making it a solid choice for Canadian utilities and contractor projects requiring CSA compliance and traceable documentation.
Compliance is supported by CSA standards for meter equipment and the IN4000-6 data sheet. Documentation included in the specification supports traceability and audit readiness, reducing regulatory risk in field deployments and helping procurement verify conformity during commissioning.
The kit reduces field modification time, minimizes neutral-related faults, and improves measurement integrity, which lowers maintenance calls and downtime. A single-pack solution streamlines procurement, speeds installation, and supports repeatable, compliant deployments across multiple meters, delivering measurable project cost savings and faster time-to-commission.
