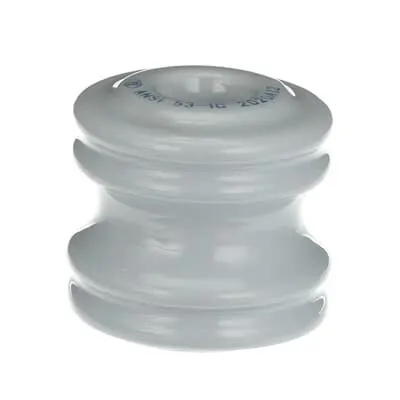

ABB 7TBA050320R0090 Spool Insulator - 100 A Porcelain
Part Number: 7TBA050320R0090
Quick Summary
Spool insulators from ABB protect high-current connections in power distribution panels and switchgear. Engineers often struggle with reliable insulation in tight layouts and the need to support 100 A services without overheating. Certification details like CE, IP, or SIL aren’t listed in this dataset; consult ABB’s IB134 data sheet for exact compliance and certification scope. Originating from Canada and sold as a single unit, this insulator simplifies stocking and reduces project lead times. The porcelain construction, compact 2 in height, and a 100 A rating deliver robust performance in demanding installations while keeping maintenance costs predictable for large facilities.
Product Information
Extended Description
7TBA050320R0090 ABB: Insulators 100 amperes. 2-1/4 inches diameter.
UPC
624871007441
Country of Origin
Canada (CA)
Selling Unit of Measure
each
Package Level 1 Units
1 EA
Package Level 1 Width
0 mm | 0 in
Package Level 1 Height
0 mm | 0 in
Package Level 1 Depth / Length
0 mm | 0 in
Package Level 2 Units
45 EA
Package Level 2 Width
203.2 mm | 8 in
Package Level 2 Height
190.5 mm | 7.5 in
Package Level 2 Depth / Length
323.85 mm | 12.75 in
Brand / Label
Microlectric
Current Rating
100 A
Effective Date
19961217
Material
Porcelain
Product Name
Parts and accessories
Product Type
Insulators
Size
2 Inches Height
Data Sheet, Technical Information
IB134
UNSPSC
39121721
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
5069 >> Electrical insulators
Porcelain construction delivers high dielectric strength and weather resistance, translating to longer service life in indoor and outdoor distribution assets, reducing replacement cycles and maintenance costs. The 100 A current rating ensures reliable performance under peak loads, minimizing insulation failure risk in critical feeders and panel boards. At 2 inches in height with a spool-style design, the unit fits compact spaces and aligns with standard mounting configurations, simplifying retrofit and new builds alike. Packaging is practical for procurement and field logistics: 1 unit per saleable item, with 45 units per Level 2 pack to streamline warehouse handling and bulk orders. Data Sheet IB134 provides installation guidance and performance expectations, while the Canada origin supports regional supply planning and lead-time optimization for North American projects.
