ABB 7TBA050320R0097 Porcelain Insulator - 7.2 kV Screw Type
Part Number: 7TBA050320R0097
Quick Summary
Porcelain Insulator for high-voltage outdoor service, ABB 7TBA050320R0097 delivers reliable isolation on transmission lines. In rugged field conditions, weathering, misalignment, and mechanical stress threaten performance and safety—this heavy‑duty unit is engineered to endure. Note: CE, SIL, or IP ratings are not listed in the data; verify required certifications with ABB for your regulatory environment. This insulator’s porcelain material and screw‑type mounting provide durable, weather‑resistant operation, supporting long service life in harsh climates. Canada origin supports regional procurement stability, while the Data Sheet IB900-UPC aids technical validation. For buyers, it complements ABB and Microlectric lineups, helping streamline sourcing, maintenance planning, and compliance without compromising reliability in outdoor power networks.
Product Information
Extended Description

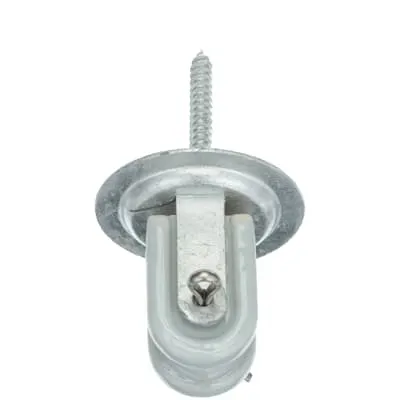

7TBA050320R0097 ABB: Heavy duty 3 inches procelain insulator. Pull out strength 1500 pounds Screw type insulator (7.2 kV). Securely held in the hot galvanized steel clevis by a cotter pin.
UPC
624871000923
Country of Origin
Canada (CA)
Selling Unit of Measure
each
Package Level 1 Units
10 EA
Package Level 1 Width
136.652 mm | 5.38 in
Package Level 1 Height
168.402 mm | 6.63 in
Package Level 1 Depth / Length
311.15 mm | 12.25 in
Package Level 2 Units
1620 EA
Package Level 2 Width
1016 mm | 40 in
Package Level 2 Height
1137.412 mm | 44.78 in
Package Level 2 Depth / Length
1219.2 mm | 48 in
Brand / Label
Microlectric
Effective Date
19970314
Material
Porcelain
Product Name
Of a kind used for the transmission of e lectrical energy
Product Type
Insulators
Size
3 Inches
Special Functions
Securely held in the hot galvanized steel clevis by a cotter pin
Data Sheet, Technical Information
IB900-UPC
UNSPSC
39121721
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
5069 >> Electrical insulators
