7TBA136170R0018
Part Number: 7TBA136170R0018
Product Information
Extended Description

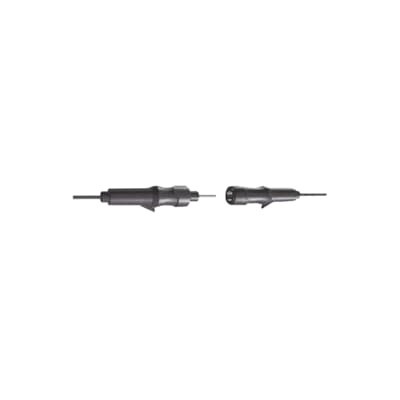

7TBA136170R0018 ABB: Primary Connector Kit for Unscreened Cable. 25 Amps, 5000 Volts Insulation. EPDM Rubber, Silicone Dielectric Grease. Enhanced Standard L823 Features - Added Features - Amer-Seal, Super-Seal and Positive-Grip. FAA L823 Type 1, Class B, Style 3 Plug and Style 10 Receptacle. Receptacle Housing Size and Plug Housing Size - Outside Diameter of Cable F is .575 inch to .785 inch, Wire Size 2 - Concentric/Stranded 4 AWG.
UPC
708917324324
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
40 EA
Package Level 1 Width
25.4 mm | 1 in
Package Level 1 Height
25.4 mm | 1 in
Package Level 1 Depth / Length
25.4 mm | 1 in
Brand / Label
Amerace
Connection Type
Crimp
Current Rating
25 A
Effective Date
20091013
Insulation Material
EPDM Rubber
Product Name
Other
Product Type
Primary Connector Kit for Unscreened Cable
Standards
ISO 9001, ISO 14001, QMI/SAI Global Certified, CSA Listed.
Data Sheet, Technical Information
54S F2-F2
UNSPSC
39121421
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4586 >> Electrical connector assembly
