7TBA136180R0002
Part Number: 7TBA136180R0002
Product Information
Extended Description

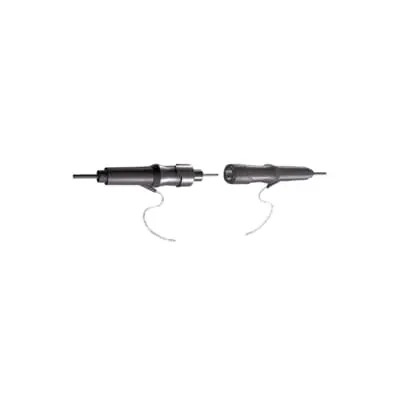

7TBA136180R0002 ABB: Primary Connector Kit for Screened Cable. Bare Tin Plated Copper Earth Wire. 25 Amps, 5000 Volts Insulation. EPDM Rubber, Silicone Dielectric Grease. FAA L823 Type 1, Class B, Style 3 Plug, Style 10 Receptacle. Receptacle Housing/Socket Contact Size and Plug Housing/Pin Contact Size - Outside Diameter of Jacket D is .32 inch to .43 inch, Outside Diameter of Insulation C is .25 inch to .33 inch, Wire Size 6 - Concentric/Stranded 10-12 AWG/4-6 mm2 or Solid 8-10 AWG/4-6 mm2.
UPC
708917321668
Country of Origin
United States (US)
Selling Unit of Measure
each
Package Level 1 Units
30 EA
Package Level 1 Width
25.4 mm | 1 in
Package Level 1 Height
25.4 mm | 1 in
Package Level 1 Depth / Length
25.4 mm | 1 in
Brand / Label
Amerace
Connection Type
Crimp
Current Rating
25 A
Effective Date
20091013
Insulation Material
EPDM Rubber
Product Name
Other
Product Type
Primary Connector Kit for Screened Cable
Standards
ISO 9001, ISO 14001, QMI/SAI Global Certified, CSA Listed.
Data Sheet, Technical Information
52S B DC6-DC6
UNSPSC
39121421
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4586 >> Electrical connector assembly
