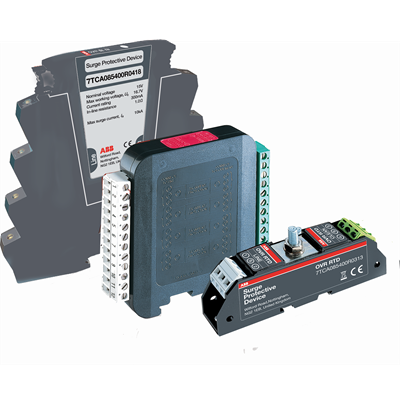

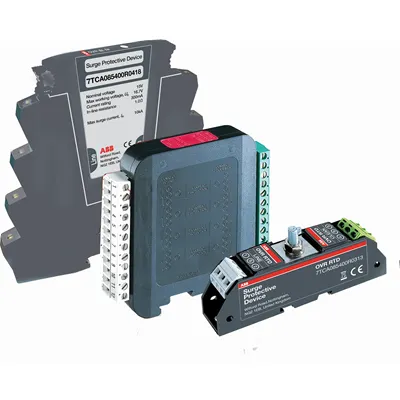

ABB 7TCA085400R0681 Surge Protective Device - IEC 61643-21
Part Number: 7TCA085400R0681
Quick Summary
ABB 7TCA085400R0681 is a surge protective device protecting critical control circuits from surges in industrial applications. Power glitches and lightning transients can damage sensors and cause downtime; this SPD helps reduce that risk. It complies with IEC 61643-21 and carries CE DoC, along with RoHS and REACH declarations to support regulatory and environmental compliance. With a compact Slimline design and LED status, it simplifies installation and provides reliable protection for panels and automation systems, delivering measurable uptime and cost savings.
Product Information
Extended Description
7TCA085400R0681 ABB: OVR 110SE/PT 110V DATA SPD WITH LED STATUS INDICATION FOR 2 WIRE SIGNAL LINES UP TO 1.25A CURRENT, PUSH TERMINALS WITH ISOLATED SCREEN CONNECTION
Suitable For
To protect systems against transient overvoltages or surges from lightning and electrical switching events
Rated Current (In)
145 mA
Connection Type
Push-In
RoHS Information
7TKK001562 RoHS3 EU DofC ABB Furse SPD
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
7TKK001563 REACH EU DofC ABB Furse SPD
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Ambient Air Temperature
Operation -40 ... +80 °C
Product Net Width
62 mm
Product Net Height
91 mm
Product Net Depth / Length
6.2 mm
Product Net Weight
0.08 kg
Package Level 1 Units
1 piece
Declaration of Conformity - CE
ABB SPD Data UKCA & CE DoC.pdf
Instructions and Manuals
ABB Slimline Surge Protection Series (SD/SE) Install Guide
Data Sheet, Technical Information
ABB Furse ESP Slimline Enhanced Surge Protection Series - Technical Data Sheet
Standards
IEC 61643-21
Slimline hardware with push-in terminals enables rapid retrofits and reduces wiring errors, accelerating commissioning and lowering field labor costs while maintaining robust overvoltage protection for industrial control panels. This translates to higher equipment availability and predictable maintenance windows in automated facilities. The LED status indicator provides real-time health monitoring and quick fault diagnosis, supporting proactive maintenance programs and minimizing unexpected outages in sensor networks and PLC inputs. Rated current of 145 mA at 110 V data levels ensures the device suppresses transient events on 2-wire signal lines without introducing unnecessary impedance, improving signal integrity and safeguarding data integrity in automation loops. RoHS and REACH declarations, along with a CE DoC, simplify regulatory compliance and sustainability reporting for modern plants. Compatibility with ABB Furse SPD families and IEC 61643-21 standards helps customers standardize protection across machines, drives, and control cabinets while keeping installation straightforward and costs predictable.
Get a Quick Quote for a ABB 7TCA085400R0681
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7TCA085400R0681?
Enquire Now
FAQs
The device uses push-in terminals for quick wiring into 2-wire signal lines. Ensure the panel is de-energized, insert conductors fully, and verify the LED status indicator after connection. Follow the ABB Slimline installation guide for proper clearances, mounting orientation, and compatible enclosure sizes. This approach minimizes wiring mistakes and speeds up commissioning while maintaining reliable surge protection.
This SPD is designed to meet IEC 61643-21 requirements for low-energy surge protection on signal lines. It carries CE DoC and declarations for RoHS and REACH, ensuring regulatory compliance. Its 110 V operation and 145 mA nominal current are aligned with common industrial signal-supply ranges, enabling straightforward integration into existing IEC 61643-21 protected networks without compromising performance.
Yes. The 2-wire signal-line protection with a 110 V data SPD and 145 mA rating is specifically intended for transient suppression on sensor and PLC input circuits. The push-in terminals simplify installation in signal-carrying paths, and the LED status gives immediate visibility of protection health, helping maintain sensor reliability and data integrity in automation networks.
The device includes Declaration of Conformity for CE, RoHS and REACH declarations, and is aligned with IEC 61643-21 standards. This combination supports regulatory compliance, environmental responsibility, and safe cross-border use in industrial environments. Documentation is available through ABB’s data sheets and supplier declarations to verify conformity.
By protecting critical panels, sensors, and PLC inputs from transient overvoltages, the SPD reduces unplanned downtime and equipment wear, delivering measurable uptime gains. The LED health indicator shortens maintenance cycles, while push-in wiring lowers commissioning time. Overall, plants experience lower maintenance costs, fewer fault-induced outages, and improved system reliability over the asset life.
