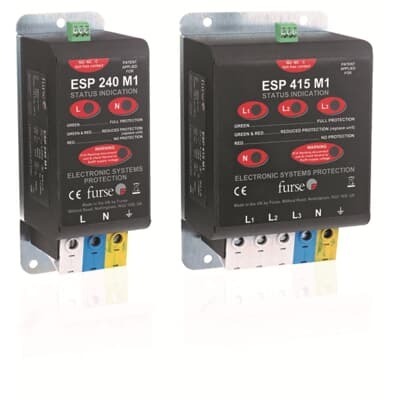

ABB 7TCA085460R0089 ESP 240M1 Surge Protective Device - IEC 61643-11
Part Number: 7TCA085460R0089
Quick Summary
ABB ESP 240M1 Surge Protective Device protects 240 V single-phase systems from transient overvoltages. In critical facilities, sudden surges from lightning or switching events can cause costly downtime and equipment damage. It is certified to IEC 61643-11 with CE and UKCA declarations, supporting regulatory compliance. Designed for TN and TT distribution, it features seven protected poles, remote indication, and straightforward screw-clamp wiring for reliable field installation. This enables procurement teams to meet reliability targets while reducing maintenance costs and project risk across industrial facilities.
Product Information
Extended Description
7TCA085460R0089 ABB: ESP 240M1 TYPE 1+2+3 POWER SPD FOR 240V SINGLE PHASE SUPPLIES
Type of Low Voltage Distribution System
TN | TT
Suitable For
To protect systems against transient overvoltages or surges from lightning and electrical switching events
Nominal AC Voltage of the System (Uo)
240 V
Voltage Protection Level ( Up)
600 V
Maximum Continuous Operating Voltage (Uc)
280 V
Temporary Overvoltage Test Value (UT)
350 V
Discharge Current
Nominal 20 kA | I (max, 8 / 20 µs) 40 kA
Short Circuit Withstand Icc
25 kA
Rated Frequency (f)
50 / 60 Hz
Short-Circuit Protective Devices
≤ 125 A
Arrester Class
I | II | III
Number of Protected Poles
7
Connection Type
Screw Clamp
Auxiliary Circuit Load
250Vac - 1A
Remote Indicator
Yes
Wire Stripping Length
17 mm
RoHS Information
7TKK001562 RoHS3 EU DofC ABB Furse SPD
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration
7TKK001563 REACH EU DofC ABB Furse SPD
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Ambient Air Temperature
Operation -40 ... +80 °C
Product Net Width
60 mm
Product Net Height
180 mm
Product Net Depth / Length
73 mm
Product Net Weight
0.60 kg
Package Level 1 Units
1 piece
EAN
5414363086321
Declaration of Conformity - CE
ABB SPD Power UKCA & DoC
Instructions and Manuals
ABB Furse SPD - ESP M1 and M1R installation instructions
Data Sheet, Technical Information
ABB Furse ESP M1 Series - Technical Data Sheet
Standards
IEC 61643-11
Product Main Type
Power SPD
Feature → Business Impact → Application: The ESP 240M1 offers seven protected poles and a Type 1+2+3 protection scheme, delivering comprehensive surge protection for 240 V single-phase panels. Business impact includes reduced unplanned downtime and extended asset life in manufacturing lines and data-intensive control cabinets; application spans service entrance, distribution boards, and machine feeders. Feature → Business Impact → Application: Nominal discharge current of 20 kA (max 40 kA) with 8/20 µs response provides robust surge handling for frequent lightning and switching surges, reducing the risk of equipment damage and nuisance tripping in high-energy environments. Application: industrial plants, critical manufacturing cells, and automation panels. Feature → Business Impact → Application: Remote indicator and screw-clamp terminals simplify local and remote status monitoring while speeding installation and future servicing in tight panel spaces; ideal for retrofit projects and new builds in TN/TT networks. Feature → Business Impact → Application: Operating temperature range -40 to +80 °C and RoHS/REACH compliance remove regulatory barriers in harsh environments and international deployments; Application: offshore facilities, facilities with wide ambient temperature variation, and global rollouts. Feature → Business Impact → Application: 250 Vac auxiliary load and 50/60 Hz rating ensure compatibility with control circuits and automation peripherals; Application: PLC inputs, PLC- controlled machines, and motor feeders requiring integrated protection with minimal additional hardware.
