7TCA091130R0538
Part Number: 7TCA091130R0538
Product Information
Extended Description

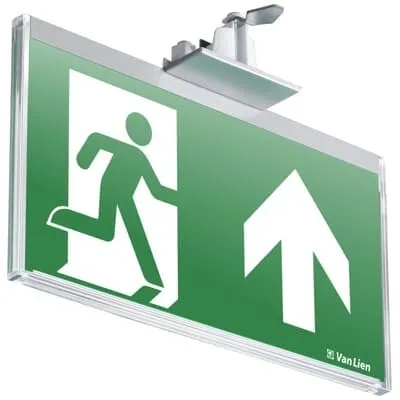

7TCA091130R0538 ABB: Slave 4 watt, 230 Volt aluminium recess 32 meter led luminaire, series Evago + pictogram PP 320/51 + GST18/3-2M connection
Product Main Type
Central Battery System
Application
Architectural
EAN
8713812769912
UPC
075114358262
Product Net Height
184 mm
Product Net Depth / Length
335 mm
Product Net Width
84 mm
Product Net Weight
3.28104 lb | 1.488 kg
Built-In Depth (t2)
210 mm
Built-In Height
48 mm
Built-In Width
68 mm
Function
Escape route signage
Functional Testing Capability
Automatic Self Test
Mounting Type
Built-in
Degree of Protection
IP40
Viewing Distance
32 m
Lamp Type
LED not exchangeable
Number of Lamps
1
Number of Lighting Heads
1
Number of Poles
3P
Number of Batteries
0
Housing Color
Aluminium
Housing Material
Plastic
Cover Material
Plastic, Transparent
Ambient Temperature
0 … 35 °C
Ballast Type
LED Operating Device Current Controlled
Color Temperature (@Tcol)
5000 K
Cross-Section
Conductor 2.5 mm²
Input Voltage Type
AC/DC
Marking Type
InsertSheet | Plate
Power Supply Type
Central (Central Battery)
Rated Voltage (Ur)
220 … 240 V
Type of Indicator
Single/double-sided
Wiring Configuration
Wiring system: Continuous circuit/emergency circuit | Type of wiring: Ending
Protection Class
Isolated (Class II)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Package Level 1 Units
box 1 piece
Package Level 1 EAN
8713812769912
Package Level 1 Height
3.43 in | 87 mm
Package Level 1 Depth / Length
15.75 in | 400 mm
Package Level 1 Width
9.84 in | 250 mm
Package Level 1 Gross Weight
1.489 kg
Data Sheet, Technical Information
EVA-CIP-32 + SNOER GST 18/3 2M
Instructions and Manuals
VanLien Instruction Leaflet Evago Sign
Declaration of Conformity - CE
VanLien CE DoC EVAGO NGS VL
ENEC Certificate
ENEC Certificate_NGS recessed (Evago, Guideway, Primora)
ETIM 8
EC001957 - Emergency luminaire
UNSPSC
39111709
