7TCA091130R0541
Part Number: 7TCA091130R0541
Product Information
Extended Description

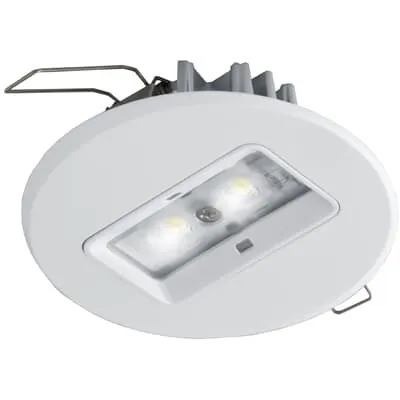

7TCA091130R0541 ABB: Slave 2 watt 230 Volt round white recess led luminaire, series Evago. Light distribution wide for example canteens + GST18/3-2M connection
Product Main Type
Central Battery System
Application
Architectural
EAN
8713812769974
UPC
075114358330
Product Net Height
38 mm
Product Net Depth / Length
226 mm
Product Net Width
100 mm
Product Net Weight
.90405 lb | 410 g
Built-In Depth (t2)
226 mm
Built-In Height
35 mm
Built-In Width
68 mm
Function
Escape route lighting
Functional Testing Capability
Automatic Self Test
Mounting Type
Built-in
Degree of Protection
IP42
Lamp Type
LED not exchangeable
Number of Lamps
1
Number of Lighting Heads
1
Illuminance
245 lm
Light Distribution Type
Focal Lens
Number of Poles
3P
Number of Batteries
0
Housing Color
White
Housing Material
Plastic
Cover Material
Plastic, Transparent
Ambient Temperature
0 … 40 °C
Ballast Type
LED Operating Device Current Controlled
Color Temperature (@Tcol)
5600 K
Cross-Section
Conductor 2.5 mm²
Input Voltage Type
AC/DC
Power Supply Type
Central (Central Battery)
Rated Voltage (Ur)
220 … 240 V
Wiring Configuration
Wiring system: Continuous circuit/emergency circuit | Type of wiring: Ending
Protection Class
Isolated (Class II)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Package Level 1 Units
box 1 piece
Package Level 1 EAN
8713812769974
Package Level 1 Height
2.44 in | 62 mm
Package Level 1 Depth / Length
8.74 in | 222 mm
Package Level 1 Width
6.5 in | 165 mm
Package Level 1 Gross Weight
0.522 kg
Data Sheet, Technical Information
EVA-R-CWI + SNOER GST 18/3 2M
Instructions and Manuals
VanLien Instruction Leaflet Evago Light
Declaration of Conformity - CE
VanLien CE DoC EVAGO NGL VL
ETIM 8
EC001957 - Emergency luminaire
UNSPSC
39111709
