7TCA091130R0556
Part Number: 7TCA091130R0556
Product Information
Extended Description

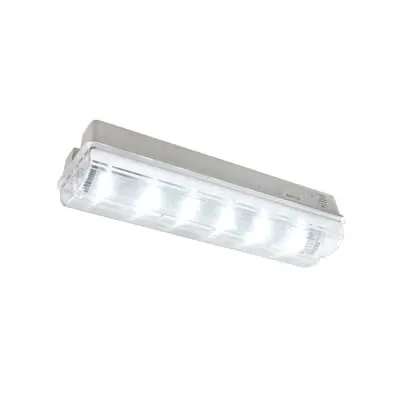

7TCA091130R0556 ABB: Day-Lite Ex-cel Luminaire, 110-230 AC/DC 0-60Hz, Lamp Type 1LED 2W, Lamp Output 214 Lumens, Operation 230V, Environment Temperature 0-40 Degrees Celsius
Product Main Type
Luminaire
Application
Commercial
EAN
5415022466102
UPC
075114363631
Product Net Height
72 mm
Product Net Depth / Length
342 mm
Product Net Width
98 mm
Product Net Weight
0.58 kg
Function
Escape route lighting/signage
Mounting Type
Wall surface mounted / ceiling surface mounting
Degree of Protection
IP65
Impact Resistance Rating
IK10
Viewing Distance
23 m
Lamp Type
LED not exchangeable
Number of Lighting Heads
1
Illuminance
Standby Mode 214 lm
Light Distribution Type
Diffuser Lens | Optic | Panel
Number of Batteries
0
Housing Color
White
Housing Material
Plastic
Cover Material
Plastic, Opal
Ambient Temperature
IEC62722-2-1 0 ... 40 °C
Ballast Type
LED Operating Device Current Controlled
Color Temperature (@Tcol)
4000 K
Input Voltage Type
AC/DC
Marking Type
Sticker
Power Consumption (@Pcons)
3.2 W | 3.4 V·A
Power Factor
0.92
Power Supply Type
Central (Central Battery)
Rated Voltage (Ur)
110...230 V
Nominal Current LED
13.59 mA
Type of Indicator
Only single-sided
Wiring Configuration
Type of wiring: Ending
Protection Class
Grounded (Class I)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Package Level 1 Units
box 1 piece
Package Level 1 EAN
5415022466102
Package Level 1 Height
86 mm
Package Level 1 Depth / Length
365 mm
Package Level 1 Width
107 mm
Package Level 1 Gross Weight
0.673 kg
Data Sheet, Technical Information
Daylite XXW1LS1 specification
Instructions and Manuals
Mid-range Slave LED Instruction sheet
Declaration of Conformity - CE
Emergi-Lite Daylite XW XXW Series DoC
ETIM 8
EC001957 - Emergency luminaire
UNSPSC
39111709
