7TCA091160R0583
Part Number: 7TCA091160R0583
Product Information
Extended Description

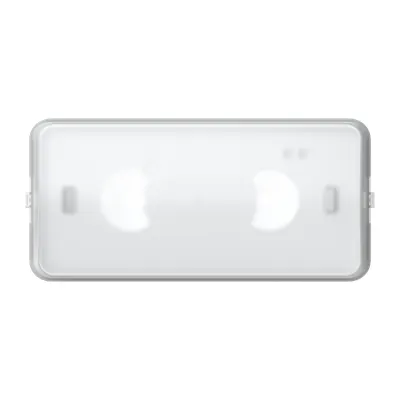

7TCA091160R0583 ABB: Self contained luminaire for escape route lighting or signage - Configurable pictograms included - wall and ceiling surface mounted - delivered with IP65 kit as standard - IK10 as standard but protection grid is available in option. System consumption 2W - 3 years warranty (excluding battery)
Product Main Type
Luminaire
Application
Distributor Select
EAN
5415022474145
UPC
075114369572
Product Net Height
78 mm
Product Net Depth / Length
240 mm
Product Net Width
115 mm
Product Net Weight
1.16865 lb | 530 g
Built-In Depth (t2)
245 mm
Built-In Height
50 mm
Built-In Width
120 mm
Function
Escape route lighting/signage
Functional Testing Capability
Automatic Self Test
Communication
Automatic self test
Mounting Type
Surface mounting/recessed mounting
Degree of Protection
IP65
Impact Resistance Rating
IK10
Viewing Distance
20 m
Lamp Type
LED not exchangeable
Number of Lamps
1
Number of Lighting Heads
0
Illuminance
110 lm
Light Distribution Type
Reflector
Number of Poles
4P
Number of Batteries
1
Battery Chemical Composition
Nickel-Cadmium
Battery Type
Industrial
Battery Autonomy
3 hour
Battery Weight
86 g
Housing Color
White
Housing Material
Plastic
Cover Material
Plastic, Transparent
Ambient Temperature
IEC62722-2-1 0…40 °C
Ballast Type
LED Operating Device Current Controlled
Color Temperature (@Tcol)
6000 K
Connection Type
Screw
Cross-Section
Conductor 1.5 mm²
Energy Efficiency Class
A++
Input Voltage Type
AC
Marking Type
Sticker
Power Consumption (@Pcons)
2 W | 5 V·A
Power Factor
0.4
Power Supply Type
Peripheral (Individual Battery)
Rated Voltage (Ur)
220...240 V
Nominal Current LED
21.73 mA
Type of Indicator
Single-sided
Wiring Configuration
Continuous circuit/emergency circuit | Suitable for through wiring
Protection Class
Isolated (Class II)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Package Level 1 Units
box 1 piece
Package Level 1 EAN
5415022474145
Package Level 1 Height
85 mm
Package Level 1 Depth / Length
250 mm
Package Level 1 Width
117 mm
Package Level 1 Gross Weight
0.612 kg
Data Sheet, Technical Information
Primevo ST_XT100ST
Instructions and Manuals
PrimEVO XT100ST (Installation Instruction)
Declaration of Conformity - CE
Primevo_Declaration of Conformity_Emergilite
ETIM 8
EC001957 - Emergency luminaire
UNSPSC
39111709
