7TCA091720R0090
Part Number: 7TCA091720R0090
Product Information
Extended Description

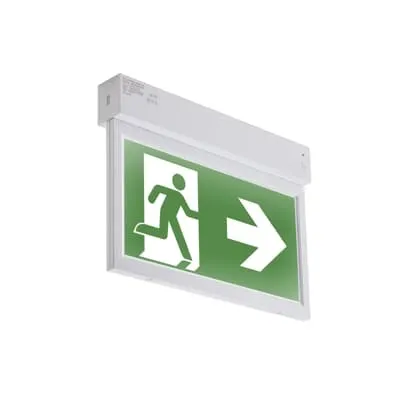

7TCA091720R0090 ABB: PrimEvo Bulkhead, M3, 220-240 Vac 50Hz, 2 LED 1.5W, 120 Lumens, Environment Temperature -5-45 Degrees Celsius
Product Main Type
Luminaire
Application
Distributor Select
EAN
5415022415469
UPC
075114329996
Product Net Height
265 mm
Product Net Depth / Length
265 mm
Product Net Width
45 mm
Product Net Weight
0.95 kg
Function
Escape route signage
Functional Testing Capability
Test Button
Mounting Type
Wall surface mounted / ceiling surface mounting
Degree of Protection
IP20
Impact Resistance Rating
IK10
Viewing Distance
24 m
Lamp Type
LED not exchangeable
Number of Lamps
1
Number of Lighting Heads
1
Illuminance
22 lm | Standby Mode 22 lm
Light Distribution Type
Panel
Number of Poles
3P
Number of Batteries
1
Battery Chemical Composition
Nickel-Cadmium
Battery Type
Industrial
Battery Autonomy
3 hour
Battery Weight
63 g
Housing Color
White
Housing Material
Plastic
Cover Material
Plastic Matt / Satinized
Ambient Temperature
IEC62722-2-1 -5...45 °C
Ballast Type
LED Operating Device Current Controlled
Color Temperature (@Tcol)
5700 K
Connection Type
Spring Clamp
Cross-Section
Conductor 1.5 mm²
Energy Efficiency Class
A++
Input Voltage Type
AC
Marking Type
Sticker
Power Consumption (@Pcons)
3.5 W | 5.2 V·A
Power Factor
0.6
Power Supply Type
Peripheral (Individual Battery)
Rated Voltage (Ur)
220...240 V
Nominal Current LED
22.60 mA
Type of Indicator
Single/double-sided
Wiring Configuration
Continuous circuit/emergency circuit | Suitable for through wiring
Protection Class
Isolated (Class II)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Package Level 1 Units
box 1 piece
Package Level 1 EAN
5415022415469
Package Level 1 Height
48 mm
Package Level 1 Depth / Length
282 mm
Package Level 1 Width
237 mm
Package Level 1 Gross Weight
1.040 kg
Data Sheet, Technical Information
PrimEvo XT200E Self-Contained 24M IP20 Surface
Instructions and Manuals
Installation manual_Primevo_XT200E
Declaration of Conformity - CE
ABB PrimEvo XT200E_declaration of conformity
ETIM 8
EC001957 - Emergency luminaire
UNSPSC
39111709
