7TCA091720R0152
Part Number: 7TCA091720R0152
Product Information
Extended Description

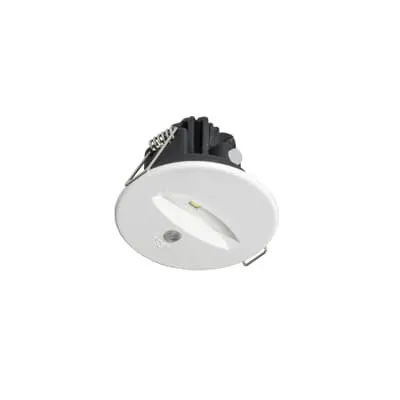

7TCA091720R0152 ABB: Ovano escape route lighting recessed 3hr DALI escape route optic
Product Main Type
Luminaire
EAN
5415022459517
UPC
075114358460
Product Net Height
38 mm
Product Net Depth / Length
55 mm
Product Net Width
40 mm
Product Net Weight
0.35 kg
Built-In Depth (t2)
360 mm
Built-In Height
38 mm
Built-In Width
40 mm
Function
Escape route lighting
Functional Testing Capability
Safety Module for Monitoring (Central Feeded System)
Communication
DALI
Mounting Type
Built-in
Degree of Protection
IP20
Impact Resistance Rating
IK08
Lamp Type
LED not exchangeable
Number of Lamps
1
Number of Lighting Heads
1
Illuminance
150 lm
Light Distribution Type
Focal Lens
Number of Poles
6P
Number of Batteries
1
Battery Chemical Composition
Nickel-Metal Hydride
Battery Type
Industrial
Battery Autonomy
3 hour
Battery Weight
154 kg
Housing Color
White
Housing Material
Plastic
Cover Material
Plastic, Transparent
Ambient Temperature
0 … 25 °C
Ballast Type
LED Operating Device Current Controlled
Color Temperature (@Tcol)
6500 K
Connection Type
Pluggable
Cross-Section
Conductor 2.5 mm²
Input Voltage Type
AC
Operate Time
3 hour
Power Consumption (@Pcons)
5 W | 5.5 V·A
Power Factor
1
Power Supply Type
Peripheral (Individual Battery)
Rated Voltage (Ur)
220...240 V
Nominal Current LED
21 mA
Wiring Configuration
Wiring system: Continuous circuit/emergency circuit | Type of wiring: Ending
Protection Class
Isolated (Class II)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Package Level 1 Units
box 1 piece
Package Level 1 EAN
5415022459517
Package Level 1 Height
65 mm
Package Level 1 Depth / Length
300 mm
Package Level 1 Width
47 mm
Package Level 1 Gross Weight
0.35 kg
Data Sheet, Technical Information
Lightalarms: XT Tritium Self-Luminous Series Catsheet
Instructions and Manuals
Instruction leaflet Ovano XT201M3H_DALI_EN
Declaration of Conformity - CE
EU Declaration of Conformity - Ovano
ETIM 8
EC001957 - Emergency luminaire
UNSPSC
39111709
