7TCA091720R0155
Part Number: 7TCA091720R0155
Product Information
Extended Description

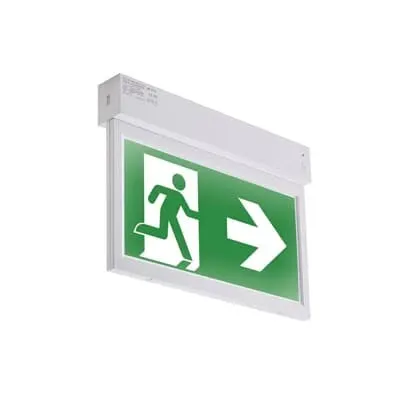

7TCA091720R0155 ABB: Ovano exit sign surface mounted ceiling 3hr DALI, including pictograms
Product Main Type
Luminaire
EAN
5415022459487
UPC
075114358439
Product Net Height
45 mm
Product Net Depth / Length
330 mm
Product Net Width
248 mm
Product Net Weight
1.24 kg
Function
Escape route signage
Functional Testing Capability
Safety Module for Monitoring (Central Feeded System)
Communication
DALI
Mounting Type
Surface mounting/recessed mounting
Degree of Protection
IP20
Impact Resistance Rating
IK08
Viewing Distance
30 m
Lamp Type
LED not exchangeable
Number of Lamps
1
Number of Lighting Heads
1
Illuminance
Standby Mode 32 lm
Number of Poles
5P
Number of Batteries
1
Battery Chemical Composition
Nickel-Metal Hydride
Battery Type
Industrial
Battery Autonomy
3 hour
Battery Weight
92.6 kg
Housing Color
White
Housing Material
Plastic
Cover Material
Plastic, Opal
Ambient Temperature
5 … 45 °C
Ballast Type
LED Operating Device Current Controlled
Color Temperature (@Tcol)
5700 K
Connection Type
Pluggable
Cross-Section
Conductor 2.5 mm²
Input Voltage Type
AC
Marking Type
InsertSheet | Plate
Operate Time
3 hour
Power Consumption (@Pcons)
3.5 W | 4.7 V·A
Power Factor
0.7
Power Supply Type
Peripheral (Individual Battery)
Rated Voltage (Ur)
220...240 V
Nominal Current LED
20.43 mA
Type of Indicator
Single/double-sided
Wiring Configuration
Wiring system: Continuous circuit/emergency circuit | Type of wiring: Ending
Protection Class
Isolated (Class II)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Package Level 1 Units
box 1 EA
Package Level 1 EAN
5415022459487
Package Level 1 Height
46 mm
Package Level 1 Depth / Length
277 mm
Package Level 1 Width
162 mm
Package Level 1 Gross Weight
1.2 kg
Data Sheet, Technical Information
Ovano XT230RS DALI specification
Instructions and Manuals
Instruction leaflet Ovano XT230RS_DALI_EN
Declaration of Conformity - CE
EU Declaration of Conformity - Ovano
ETIM 8
EC001957 - Emergency luminaire
UNSPSC
39111709
