7TCA091720R0193
Part Number: 7TCA091720R0193
Product Information
Extended Description

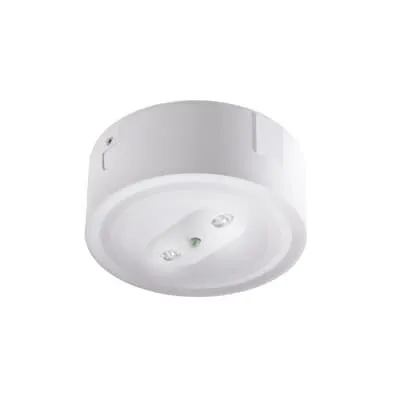

7TCA091720R0193 ABB: Self contained luminaire for escape route lighting (long beam) - System consumption 4,8 - 3 years warranty (excluding battery)
Product Main Type
Luminaire
Application
Distributor Select
EAN
5415022473506
UPC
075114368469
Product Net Height
57 mm
Product Net Depth / Length
140 mm
Product Net Width
140 mm
Product Net Weight
.9261 lb | 420 g
Function
Escape route lighting
Functional Testing Capability
Automatic Self Test
Communication
Automatic self test
Mounting Type
Ceiling surface mounting
Degree of Protection
IP20
Impact Resistance Rating
IK10
Lamp Type
LED not exchangeable
Number of Lamps
2
Number of Lighting Heads
1
Illuminance
120 lm
Light Distribution Type
Symmetric
Number of Poles
3P
Number of Batteries
1
Battery Chemical Composition
Nickel-Cadmium
Battery Type
Industrial
Battery Autonomy
3 hour
Battery Weight
63.1 g
Housing Color
White
Housing Material
Plastic
Cover Material
Plastic Matt / Satinized
Ambient Temperature
IEC62722-2-1 0...45 °C
Ballast Type
Electronic Transformer
Color Temperature (@Tcol)
4000 K
Connection Type
Spring Clamp
Cross-Section
Conductor 0.75...2.5 mm²
Energy Efficiency Class
A++
Input Voltage Type
AC
Power Consumption (@Pcons)
4.5 W | 9 V·A
Power Factor
0.6
Power Supply Type
Peripheral (Individual Battery)
Rated Voltage (Ur)
220...240 V
Nominal Current LED
39.13 mA
Wiring Configuration
Continuous circuit/emergency circuit | Suitable for through wiring
Protection Class
Isolated (Class II)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Package Level 1 Units
box 1 piece
Package Level 1 EAN
5415022473506
Package Level 1 Height
75 mm
Package Level 1 Depth / Length
145 mm
Package Level 1 Width
145 mm
Package Level 1 Gross Weight
0.511 kg
Data Sheet, Technical Information
Primevo ST_SM100ST
Instructions and Manuals
PrimEVO SM100ST (Installation Instruction)
Declaration of Conformity - CE
EU Declaration of Conformity - PrimEvo
ETIM 8
EC001957 - Emergency luminaire
UNSPSC
39111709
