7TCA301300R0168
Part Number: 7TCA301300R0168
Product Information
Extended Description

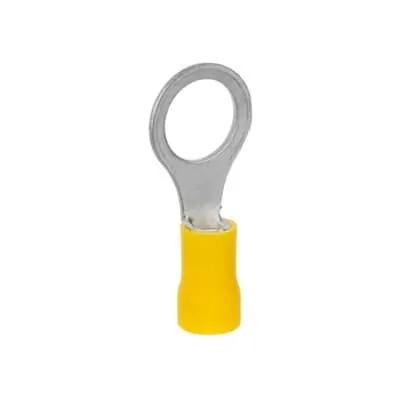

7TCA301300R0168 ABB: Vinyl-Insulated Ring Terminal, Single Crimp, Length 34mm, Width 15mm, Diameter 3.4mm, Stud Size M8, Wire Range 4-6mm2, Copper, Tin Plated, 600V Max, Temperature Rating 75 Degrees Celsius
EAN
5415022405200
UPC
786210139746
Country of Origin
China (CN)
Selling Unit of Measure
each
Package Level 1 Units
100 piece
Package Level 1 Width
1 in | 25 mm
Package Level 1 Height
6.69 in | 170 mm
Package Level 1 Depth / Length
5.9 in | 150 mm
Package Level 2 Units
800 piece
Package Level 2 Width
7.09 in | 180 mm
Package Level 2 Height
5.91 in | 150 mm
Package Level 2 Depth / Length
3.54 in | 90 mm
Package Level 3 Units
8000 piece
Package Level 3 Width
12.6 in | 320 mm
Package Level 3 Height
7.87 in | 200 mm
Package Level 3 Depth / Length
18.9 in | 480 mm
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Information
False - does not contain substances > 0.1 mass percentage
Brand / Label
Spec-Kon
Color
Yellow
Effective Date
20170214
Material
Copper
Product Name
OTHER SWITCHES
Product Type
Vinyl-Insulated Ring Terminal
Standards
IEC 60352-2
Voltage Rating
600 V
Wire Size
4-6 mm²
Data Sheet, Technical Information
Terminals, Ring Vinyl-insulated, Single Crimp
ETIM 7
EC001052 - Solderless copper terminals for copper conductors
ETIM 8
EC001052 - Solderless copper terminals for copper conductors
ETIM 9
EC001052 - Solderless copper terminals for copper conductors
UNSPSC
39121432
WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)
4608 >> Solderless copper terminals for copper conductors
