ABB EA0601 Control and Automation Board - CE Certified
Part Number: EA0601
Quick Summary
ABB EA0601 is a control and automation board for IS2 enclosure systems in industrial automation. It addresses installation delays and mismatches by delivering a ready-to-fit mounting kit with pre-assembled fastening hardware. The assembly carries CE marking, RoHS compliance, and REACH declarations, with compatibility for galvanized steel IS2 cabinets. With standardized depths from 300 to 1000 mm and reference heights from 1400 to 2200 mm, it fits a wide range of panel sizes. The compact 55 mm by 40 mm profile and 1.88 kg weight simplify routing and mounting, while documentation and a CE declaration streamline QA and audits. This combination speeds commissioning and reduces lifecycle costs for engineering teams.
Product Information
Extended Description

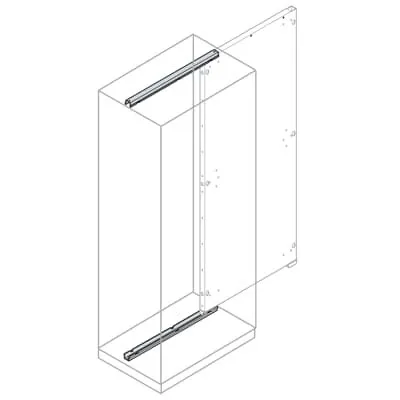

EA0601 ABB: Track for front plate insertion D=600mm
Sub-Function 3
Fastening parts/-set
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
22. Spare parts and mounting hardware
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B320
Material
Galvanized Steel sheet
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
55 mm
Product Net Height
40 mm
Product Net Depth / Length
600 mm
Product Net Weight
1.880 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
1.910 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Object Classification Code
U
Standards
See code for structure
Feature: Kit is pre-assembled mounting hardware. Business Impact: Reduces installation steps and commissioning time, lowering on-site labor costs. Application: IS2 enclosure mounting for control and automation boards. Feature: Galvanized steel sheet construction. Business Impact: Improves corrosion resistance and vibration tolerance in harsh environments, extending panel life. Application: Industrial manufacturing and process automation. Feature: Flexible depth and width compatibility. Business Impact: Fits multiple IS2 configurations with depths from 300 to 1000 mm and widths from 400 to 1600 mm, reducing part proliferation. Application: New builds and retrofits where space is constrained. Feature: Regulatory compliance package. Business Impact: Minimizes regulatory risk with CE declaration, RoHS, and REACH compliance, simplifying audits. Application: Environments with strict compliance requirements. Feature: Documentation and mounting hardware provisioning. Business Impact: Streamlines procurement and installation with fastening parts and manuals, reducing downtime. Application: Maintenance and field service scenarios where quick, repeatable mounting is needed. This combination supports faster deployment, lower total cost of ownership, and greater predictability in panel assembly for IS2-based automation projects.
Get a Quick Quote for a ABB EA0601
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EA0601?
Enquire Now
FAQs
EA0601 is designed to fit IS2 enclosures and ships as a pre-assembled mounting kit with fastening hardware, reducing field assembly steps. Ensure compatibility with enclosure depth options (300–1000 mm) and verify the mounting points align with the control and automation board. Use the included manuals (1STM604121R0006) for step-by-step guidance.
Key specs include a product net width of 55 mm, net height of 40 mm, and net depth of 600 mm, with reference depths of 300–1000 mm and reference heights of 1400–2200 mm. Material is galvanized steel, and the kit is a kit/pre-assembled mounting option for IS2 enclosure mounting. Weight is approximately 1.88 kg.
Yes. EA0601 carries CE Declaration of Conformity, RoHS information with a RoHS date of 20250108, and REACH information with a 20250108 REACH date. It is categorized as WEEE not in scope for the end product, reflecting regulatory alignment for European installations.
EA0601 is ideal for IS2 enclosure-based automation panels that house control and automation boards. It supports manufacturing and process automation environments requiring reliable mounting, quick installation, and regulatory compliance, while accommodating a range of enclosure depths and widths.
The pre-assembled mounting kit reduces field labor and commissioning time, lowering downtime and labor costs. Galvanized steel offers durable mounting with improved resistance to corrosion and vibration, lowering replacement frequency. Documentation and CE/REACH/RoHS compliance simplify audits and ongoing maintenance.
