ABB EA0801 Control and Automation Board - CE Declaration
Part Number: EA0801
Quick Summary
ABB EA0801 Control and Automation Board enables modular mounting and IS2 enclosure integration for factory automation. Many users struggle with mismatched mounting hardware and slow installation in dense control rooms. This solution carries CE conformity, RoHS compliance, and REACH declarations to simplify procurement and regulatory audits. Coupled with IS2 enclosure compatibility and galvanized steel construction, it delivers faster commissioning and lower lifecycle cost. Engineers benefit from the 55 mm width, 800 mm depth compatibility and pre-assembled mounting options. The kit's galvanized steel and weight around 2.65 kg support robust, durable installations across manufacturing floors. For procurement teams, the IS2 compatibility and regulatory declarations streamline supplier qualification and audits. In summary, EA0801 reduces risk, accelerates deployment, and aligns with tightening ES standards in factory automation environments.
Product Information
Extended Description

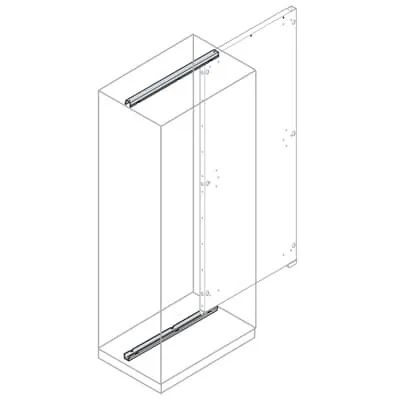

EA0801 ABB: Track for front plate insertion D=800mm
Sub-Function 3
Fastening parts/-set
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
22. Spare parts and mounting hardware
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B320
Material
Galvanized Steel sheet
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
55 mm
Product Net Height
40 mm
Product Net Depth / Length
800 mm
Product Net Weight
2.650 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1400 mm | 1600 mm | 1800 mm | 2000 mm | 2200 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm | 1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
2.710 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC002625 - Mounting accessories (enclosure/cabinet)
ETIM 9
EC002625 - Mounting accessories (enclosure/cabinet)
eClass
V11.1 : 27182807
Object Classification Code
U
Standards
See code for structure
The EA0801 ships as a complete kit of fastening parts and mounting hardware, which directly reduces assembly time and minimizes misalignment during panel integration. The business impact is tangible: faster commissioning, fewer field adjustments, and lower labor costs on your automation projects. In application, technicians deploy it within IS2 Enclosures for Automation to secure the Control and Automation Board quickly and accurately. The galvanized steel sheet construction provides robust corrosion resistance and durability in harsh factory environments, extending service life and lowering maintenance needs. This translates to higher equipment uptime and reduced replacement cycles, especially in vibration-prone or dusty areas where enclosure mounting surfaces face regular wear. With a compact 55 mm width and 40 mm height, the EA0801 offers flexible fitment across standard IS2 enclosure footprints while the 800 mm depth support tracks commonly used for front plate insertion. The reference depth/length options—300, 400, 500, 600, 800, 1000 mm—plus heights of 1400–2200 mm and widths of 400–1600 mm, enable precise tailoring to a range of control panels, minimizing the need for custom fabrication. The combination of pre-assembled options and mounting kit versatility reduces setup time further and simplifies onboarding of new automation configurations. RoHS and REACH declarations dated January 8, 2025, along with the CE conformity, streamline procurement processes and regulatory audits, reducing qualification cycles for projects across manufacturing floors. Installation and handling are eased by a total net weight of 2.650 kg, enabling straightforward on-site mounting without excessive crane or crew support. In practice, procurement teams gain a predictable BOM with IS2 compatibility, regulatory transparency, and clear environmental compliance; for engineers, the solution translates into faster time-to-value and lower total cost of ownership for automation cabinet projects.
Get a Quick Quote for a ABB EA0801
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EA0801?
Enquire Now
FAQs
Start by verifying IS2 enclosure compatibility and handling the EA0801 kit, which includes fastening parts and mounting hardware. Choose the appropriate reference depth from 300 to 1000 mm and align with the enclosure backplane. Attach the mounting kit to the front plate track, then secure the Control and Automation Board. Refer to 1STM604121R0006 for the installation manual to ensure correct torque and clearance.
Key specs include Product Net Width 55 mm, Product Net Height 40 mm, Product Net Depth 800 mm, and a Net Weight of 2.650 kg. The kit supports reference depths 300–1000 mm, heights 1400–2200 mm, and widths 400–1600 mm, delivering a flexible solution for multiple IS2 enclosure configurations.
Yes. EA0801 is designed as a mounting kit for IS2 Enclosures for Automation, specifically targeting Control and Automation Board installations. Its kit-based mounting type and pre-assembled option are optimized for front-plate insertion tracks and standardized control panels, reducing layout complexity in automation projects.
EA0801 includes CE Declaration of Conformity, RoHS Information dated 20250108, and REACH Declaration dated 20250108. It is categorized as WEEE not in scope, with environmental information referencing the IS2 Enclosures Technical Catalogue 2024. These certifications support procurement and regulatory audits without additional compliance work.
EA0801 reduces installation time and field reworks through a complete kit, improving first-pass assembly quality and lowering labor costs. Its durable galvanized steel construction extends service life in harsh environments, while RoHS/REACH/CE compliance simplifies audits and supplier qualification, yielding faster project approvals and lower total cost of ownership over the system lifecycle.
