ABB EA1411 Mounting Plate for Automation Enclosures - CE IS2
Part Number: EA1411
Quick Summary
ABB EA1411 Mounting Plate for Automation Enclosures provides a sturdy back plate for System pro E control IS2 installations. This pre-assembled kit resolves common issues with panel rigidity and misalignment in large control cabinets, speeding up installation and reducing rework. The product carries CE conformity with IS2 and RoHS compliance, and a REACH declaration, giving engineers confidence in regulatory compliance on the factory floor. Built from galvanized steel for durability in demanding environments, the plate supports scalable enclosure configurations and long service life. By standardizing mounting hardware, it simplifies procurement and reduces parts variance, while integrating smoothly with ABB automation components and typical enclosure back plates.
Product Information
Extended Description

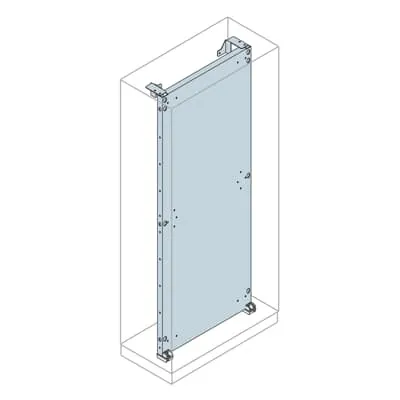

EA1411 ABB: Mounting plate 1400x1000mm (HxW)
Sub-Function
Back plate
Suitable For
Automation and Control Enclosures (System pro E control) - IS2
Suitable for Product Class
Control and Automation Board
Accessory Type
2. Mounting Plates
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B320
Material
Galvanized steel sheet
Options Provided
1. Standard mounting plates
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
1STC804013D0208
Product Net Width
901 mm
Product Net Height
40 mm
Product Net Depth / Length
1284 mm
Product Net Weight
26.6630 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm
Reference Height
1400 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
26.663 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
Instruction handbook - AM2 and AMX Control and Automation Boards
Data Sheet, Technical Information
1STC804013D0208
ETIM 8
EC000200 - Enclosure for control circuit devices
ETIM 9
EC000200 - Enclosure for control circuit devices
eClass
V11.1 : 27371205
Object Classification Code
U
Galvanized steel back plate offers corrosion resistance and structural integrity in harsh industrial environments, increasing panel longevity and reducing maintenance frequency. This feature translates to a tangible business impact: fewer field failures and lower lifecycle costs, particularly in high-dust or humid manufacturing settings. The kit is supplied as a 2. Mounting Plates option and is available as a Kit | Pre assembled, enabling rapid deployment and consistent installation quality across multiple enclosures, which reduces commissioning time and labor costs. The 1400x1000 mm reference footprint with compatible reference depths (300–800 mm) supports large System pro E control IS2 configurations, simplifying layout planning and future expansions. Compatibility with Automation and Control Enclosures ensures seamless integration with ABB components and standard back plates, minimizing custom fabrication. Regulatory compliance is baked in via CE conformity, RoHS, and a REACH declaration, addressing risk and audit requirements while maintaining supply chain reliability. These characteristics collectively reduce total cost of ownership and improve project predictability in capital-intensive control-panel programs.
Get a Quick Quote for a ABB EA1411
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EA1411?
Enquire Now
FAQs
To install the EA1411, align the back plate with the enclosure mounting points, connect via pre-assembled mounting hardware, and secure using the standard ABB mounting pattern. The kit is designed for straightforward field assembly with minimal tools, reducing commissioning time. Refer to the AM2/AMX Instruction Handbook for specific step-by-step guidance and torque recommendations to ensure robust, vibration-resistant mounting.
EA1411 is designed for Automation and Control Enclosures (System pro E control) with IS2 compatibility. It functions as a back plate mounting kit suitable for Control and Automation Board applications, ensuring a precise fit with ABB enclosure systems and standard back plates. This compatibility simplifies procurement and helps engineers standardize enclosure hardware across projects.
Yes. The EA1411 carries RoHS information with a RoHS date of 20250108 and a REACH declaration confirming compliance. The REACH information states no substances exceeding 0.1 mass percentage, and the REACH date confirms current compliance status. This provides regulatory assurance for installations in regions with strict material restrictions.
Key dimensions include a reference height of 1400 mm and width of 1000 mm, with a product net width of 901 mm, net height of 40 mm, and net depth of 1284 mm. The package level is 1 piece, with a gross weight of 26.663 kg. These specs support planning for large back plates in System pro E IS2 configurations.
EA1411 delivers measurable value by enabling faster, more consistent installations, reducing field rework, and improving long-term panel rigidity. Its pre-assembled kit format lowers labor costs, while CE, RoHS, and REACH compliance mitigates regulatory risk. The large, durable galvanized steel back plate supports scalable enclosure designs, aligning with standard ABB components to streamline procurement and project timelines.
