ABB EA1780 Control and Automation Board - RoHS 20250108
Part Number: EA1780
Quick Summary
ABB EA1780 control and automation board is designed to support IS2 enclosure automation systems in industrial facilities. Engineers frequently face misfits and slow installation when upgrading control panels, leading to downtime and project delays. This solution carries CE conformity, RoHS compliance, and REACH declarations to ensure regulatory alignment across markets, while ETIM and eClass classifications help with accurate part selection. With oversized mounting plates and a pre-assembled kit, it accelerates installation, reduces field errors, and improves panel reliability. In short, it adds predictable deployment timelines and lowers total cost of ownership for automation projects.
Product Information
Extended Description

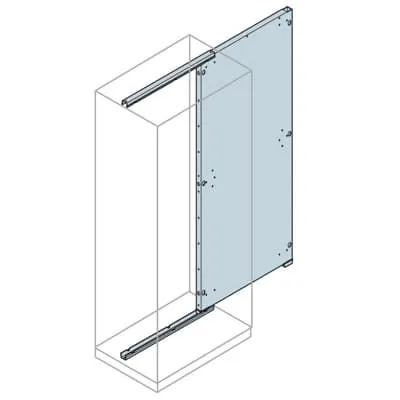

EA1780 ABB: Oversized zinc plate with track 1600x800mm(HxW)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
2. Mounting Plates
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B320
Material
Galvanized Steel sheet
Options Provided
2. Oversized mounting plates
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
701 mm
Product Net Height
1600 mm
Product Net Depth / Length
1490 mm
Product Net Weight
15.788 kg
Reference Depth/Length
300 mm | 400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1600 mm
Reference Width
800 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
31.44 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0007
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000213 - Mounting plate for distribution board
ETIM 9
EC000213 - Mounting plate for distribution board
eClass
V11.1 : 27400639
Standards
See code for structure
Oversized mounting plates provide additional stability and easier alignment during panel assembly. This translates to faster commissioning and reduced risk of misalignment in crowded control rooms. Applications include IS2 enclosures for automation where space and mounting tolerance are critical. Kit with pre assembled mounting type reduces field labor and coordination with multiple trades. This feature shortens project timelines, lowers installation costs, and minimizes on-site errors by ensuring pre-assembled mounting plates match enclosure dimensions. Material and compliance: Galvanized steel sheet ensures corrosion resistance in harsh environments; RoHS, CE declarations, and REACH ensure regulatory compliance. ETIM 8 EC000213 and eClass 27400639 help procurement teams identify compatible mounting plates. Dimensions and compatibility: Product net width 701 mm, height 1600 mm, depth 1490 mm; reference depths 300–1000 mm. Package includes one 1 piece unit with a total gross weight of 31.44 kg. Installation and maintenance: Includes ISO 9001 referenced documentation and 1STM604121R0007.
Get a Quick Quote for a ABB EA1780
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EA1780?
Enquire Now
FAQs
EA1780 is provided as a pre-assembled mounting kit with two oversized mounting plates, designed to fit IS2 automation enclosures. It supports reference depths of 300, 400, 500, 600, 800, and 1000 mm and includes clear assembly instructions, enabling faster, error-free installations and reduced on-site labor.
Yes. The EA1780 carries CE conformity with a dedicated Declaration of Conformity and RoHS compliance, with RoHS information dated 20250108. REACH declaration is also provided to reinforce regulatory alignment across markets.
The product features a net width of 701 mm, a net height of 1600 mm, and a net depth of 1490 mm, with a net weight of 15.788 kg. Package level 1 units include 1 piece with a gross weight of 31.44 kg.
EA1780 uses galvanized steel sheet for corrosion resistance. It is RoHS compliant, includes a REACH declaration, and is categorized as WEEE not in scope for the enclosure assembly. Additional classifications include ETIM EC000213 and eClass 27400639 for procurement reference.
By delivering a pre-assembled mounting kit with oversized plates, EA1780 reduces field labor and assembly errors, shortening installation timelines and lowering labor costs. Its IS2 compatibility, CE and RoHS compliance, and ETIM/eClass classifications simplify procurement and certified integration into control panels, enhancing reliability and reducing lifecycle risk.
