ABB EA1800 Mounting Plates Kit for IS2 Enclosures CE
Part Number: EA1800
Quick Summary
EA1800 Mounting Plates for IS2 enclosures provide a robust kit for joining and mounting distribution panels in control and automation cabinets for IS2 systems. Engineers often struggle with misalignment, retrofit costs, and extended downtime when assembling modular enclosures on complex production lines. This kit carries CE conformity, RoHS compliance dated 20250108, REACH declaration, and ETIM 8 classification for mounting plates. Pre-assembled plates reduce field installation time, optimize mounting accuracy, and extend service life in demanding industrial environments. With galvanized steel construction and standard options, it supports 400 mm depth variants for scalable automation architectures.
Product Information
Extended Description

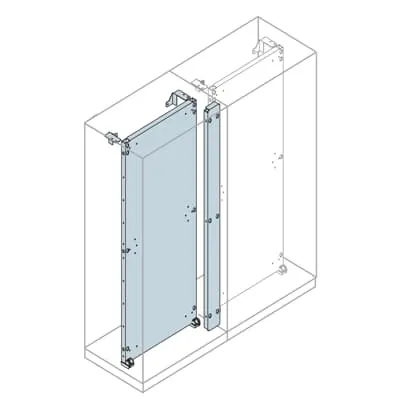

EA1800 ABB: Kit for joining plates, height 1800mm
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
2. Mounting Plates
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B320
Material
Galvanized Steel sheet
Options Provided
1. Standard mounting plates
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
30 mm
Product Net Height
1682 mm
Product Net Depth / Length
100 mm
Product Net Weight
7.170 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1800 mm
Reference Width
400 mm | 600 mm | 800 mm | 1000 mm | 1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
7.170 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000213 - Mounting plate for distribution board
ETIM 9
EC000213 - Mounting plate for distribution board
eClass
V11.1 : 27400639
Object Classification Code
U
Standards
See code for structure
Feature: Pre-assembled mounting plates shipped as a kit. Business Impact: Reduces field labor, minimizes misalignment, and shortens installation cycles. Application: Ideal for IS2 enclosure upgrades and new automation panel builds where speed and precision matter. Feature: Galvanized steel sheet construction. Business Impact: Delivers corrosion resistance and long-term durability in harsh factory environments, lowering maintenance and replacement costs. Application: Suitable for damp, dusty, or wash-down areas in process and manufacturing plants. Feature: Includes 2 mounting plates with standard options. Business Impact: Simplifies configuration, accelerates commissioning, and enables quick reconfiguration for changing line layouts. Application: Useful in modular control and automation boards across varied IS2 frame sizes. Feature: Reference depth/length options (400, 500, 600, 800, 1000 mm). Business Impact: Enables scalable, modular enclosure assemblies with consistent mounting geometry. Application: Supports multi-depth IS2 systems and future expansion without rework. Feature: Compliance and classification (CE, RoHS, REACH, ETIM 8, eClass). Business Impact: Reduces regulatory risk, ensures traceability, and speeds procurement with standardized parts. Application: Critical for regulated manufacturing environments and OEM certifications.
Get a Quick Quote for a ABB EA1800
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EA1800?
Enquire Now
FAQs
Yes. The EA1800 kit is designed for IS2 enclosures and supports reference depths of 400, 500, 600, 800, and 1000 mm, with a 1800 mm overall height. The plates arrive pre-assembled to simplify on-site mounting and ensure consistent alignment across multiple enclosure configurations.
The EA1800 mounting plates carry CE conformity, RoHS information dated 20250108, and REACH declarations. ETIM 8 classification EC000213 applies to mounting plates for distribution boards, supporting regulatory compliance and accurate cataloging in procurement systems.
Use the EA1800 kit for IS2 automation enclosures requiring reliable plate-to-plate joining, pre-assembled mounting efficiency, and scalable depth options. It’s ideal for control and automation boards in mid- to high-volume production lines where fast commissioning and repeatable mounting accuracy are critical.
CE conformity confirms compliance with essential health and safety standards, RoHS restricts hazardous substances with 20250108 as the date, and REACH declarations address chemical safety. Together they reduce regulatory risk, simplify audits, and support supplier qualification processes in regulated manufacturing environments.
The pre-assembled mounting plates cut on-site assembly time, lessen misalignment issues, and extend service life due to galvanized steel durability. With standard mounting plates included and clear installation manuals (1STM604121R0006), you gain faster commissioning, lower labor costs, and a repeatable, scalable mounting solution for evolving IS2 configurations.
