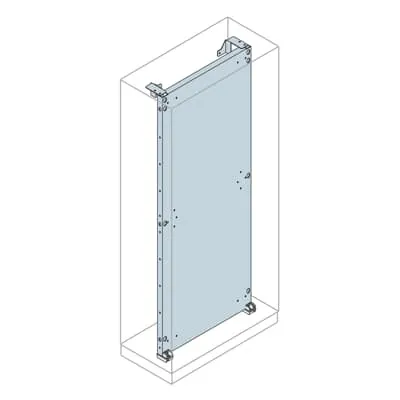

ABB EA1860 Mounting Plate for Board - ETIM EC000213
Part Number: EA1860
Quick Summary
ABB EA1860 Mounting Plate for Board is a robust mounting solution designed to support control and automation panels in AM2 Cabinets and IS2 Enclosures. It can be delivered as a kit or pre-assembled, enabling straightforward integration with existing ABB equipment and third-party components. Engineers often wrestle with space constraints, interface mismatches, and long lead times during panel upgrades. With CE Declaration, RoHS compliance dated 20250108, and REACH information aligned to IS2 standards, it delivers regulatory confidence across global deployments. The galvanized steel construction, defined dimensions (491 mm width, 1692 mm height, 30 mm depth), and reference depths of 400–1000 mm translate into faster commissioning, standardized interfaces, and lower total cost of ownership. The kit option and standardized mounting plates help reduce on-site complexity and accelerate project timelines.
Product Information
Extended Description
EA1860 ABB: Mounting plate 1800x600mm (HxW)
Suitable For
AM2 Cabinets | IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
2. Mounting Plates
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B320
Material
Galvanized Steel sheet
Options Provided
1. Standard mounting plates
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
491 mm
Product Net Height
1692 mm
Product Net Depth / Length
30 mm
Product Net Weight
20.4 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1800 mm
Reference Width
600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
20.400 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000213 - Mounting plate for distribution board
ETIM 9
EC000213 - Mounting plate for distribution board
eClass
V11.1 : 27400639
Object Classification Code
U
Standards
See code for structure
Feature: Galvanized steel sheet provides a robust, corrosion-resistant mounting surface. Benefit: Extends service life and reduces maintenance needs in harsh industrial environments. Application: Ideal for long-term automation panel installations in AM2 cabinets and IS2 enclosures, where longevity matters. Feature: Kit | Pre assembled mounting type. Benefit: Reduces on-site assembly steps, accelerates commissioning, and lowers installation labor costs. Application: Suitable for fast-track projects and retrofit scenarios across automation networks. Feature: Dimensions and reference depths. Benefit: Flexible fit with reference depths of 400, 500, 600, 800, and 1000 mm; compatible with 1800 mm height and 600 mm width frames. Application: Supports standardizing interfaces and minimizes custom fabrication for distribution boards. Feature: Weight and packaging. Benefit: 20.4 kg weight provides manageable handling; single-piece packaging simplifies logistics and inventory planning. Application: Streamlines procurement and reduces transport risk for large control panels. Feature: Compliance highlights. Benefit: RoHS information, REACH declaration dated 20250108, and CE conformity reduce regulatory risk and audit findings. Application: Enables global deployments in regulated environments and supports end-user compliance reporting. Feature: Documentation and standards. Benefit: ETIM 8/9 EC000213 alignment, eClass V11.1 code, and official installation instructions (1STM604121R0006) improve interoperability and procurement efficiency. Application: Fits IS2 enclosures’ technical catalogue context and accelerates parts matching for distributors.
Get a Quick Quote for a ABB EA1860
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EA1860?
Enquire Now
FAQs
EA1860 is designed for AM2 Cabinets and IS2 Enclosures for Automation. It arrives as a mounting kit or pre-assembled, ensuring compatibility with standard ABB hardware and third-party components already in the control panel environment.
The mounting plate specifies a product net width of 491 mm, net height of 1692 mm, and net depth of 30 mm, with a product net weight of 20.4 kg. Packaging is 1 piece per unit, simplifying logistics and inventory management.
Yes. RoHS information is provided with a RoHS date of 20250108, REACH declaration with a matching date, and a CE Declaration of Conformity for IS2. WEEE categorization indicates the product is not in the WEEE scope, supporting regulatory compliance.
EA1860 uses a Kit | Pre assembled mounting type with standard mounting plates as an option. It’s designed to integrate with reference depths of 400–1000 mm and aligns with ETIM 8/9 EC000213 for distribution board mounting plates, ensuring compatibility with typical panel architectures.
The pre-assembled kit reduces field wiring and assembly time, accelerating commissioning and minimizing on-site modifications. Compatible with standard depths and framing, it lowers total cost of ownership by enabling faster upgrades, easier maintenance, and consistent interfaces across automation projects.
