ABB EA1910 Mounting Plates for IS2 Enclosures - CE
Part Number: EA1910
Quick Summary
ABB EA1910 Mounting Plates streamline assembly for IS2 enclosures used in automation control panels. The design addresses common pain points of misalignment and lengthy field installation when retrofitting large control and automation boards. It carries a CE Declaration of Conformity and RoHS/REACH compliance, aligning with the IS2 Enclosures Technical Catalogue 2024 for guaranteed compatibility. The kit includes oversized back plates and two mounting plates, pre-assembled for faster commissioning and precise alignment. Built from galvanized steel, it offers robust support in demanding environments while reducing maintenance needs. For systems integrators and OEMs, the combination of pre-assembled mounting hardware, defined reference depths, and ABB engineering pedigree translates into measurable efficiency and lower total cost of ownership.
Product Information
Extended Description

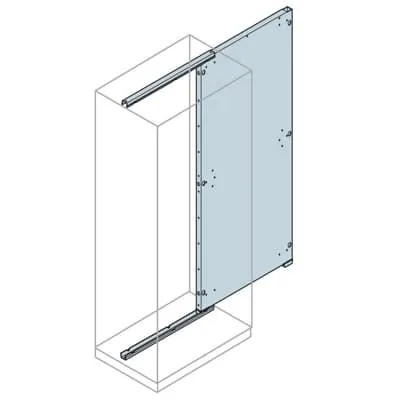

EA1910 ABB: Oversized back plates+tracks 1800x1000mm (HxW)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
2. Mounting Plates
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B320
Material
Galvanized Steel sheet
Options Provided
2. Oversized mounting plates
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
993 mm
Product Net Height
1698 mm
Product Net Depth / Length
45 mm
Product Net Weight
43.360 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1800 mm
Reference Width
1000 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
44.240 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000213 - Mounting plate for distribution board
ETIM 9
EC000213 - Mounting plate for distribution board
eClass
V11.1 : 27400639
Object Classification Code
U
Standards
See code for structure
Feature: Pre-assembled mounting kit with oversized back plates supports an 1800x1000 mm footprint. Business Impact: Speeds up installation, minimizes field errors, and improves initial alignment. Application: Ideal for rapid deployment in IS2 automation enclosures during control panel builds. Feature: Galvanized steel mounting plates provide corrosion resistance and mechanical strength. Business Impact: Extends service life, lowers maintenance needs, and reduces replacement costs in harsh plant environments. Application: Suitable for long-term automation board installations in manufacturing facilities. Feature: Includes two mounting plates with options for oversized mounting, enabling flexible layouts. Business Impact: Increases configurability, supports various enclosure depths, and reduces custom fabrication. Application: Works with reference depths from 400 to 1000 mm for streamlined retrofits. Feature: Regulatory compliance package including CE, RoHS, and REACH declarations. Business Impact: Minimizes compliance risk, streamlines procurement, and supports audits. Application: Essential for regulated industries and supplier qualification. Feature: Clear compatibility with IS2 Enclosures and ABB IS2 catalog; well-defined product data and dimensions. Business Impact: Improves sourcing accuracy, reduces change orders, and accelerates project timelines. Application: Fits into ABB automation ecosystems for scalable control and automation boards.
Get a Quick Quote for a ABB EA1910
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EA1910?
Enquire Now
FAQs
EA1910 is designed specifically for ABB IS2 automation enclosures and includes oversized back plates plus two pre-assembled mounting plates. It supports reference depths from 400 to 1000 mm and a 993 mm width with a 1698 mm height footprint, delivering a streamlined retrofit or new-build mounting solution with minimal field fabrication.
The oversized back plates are pre-assembled, reducing on-site assembly time and alignment adjustments. Expect faster commissioning, fewer misalignments, and lower labor costs during installation for large control and automation boards in IS2 enclosures.
Yes, EA1910 carries a CE Declaration of Conformity and RoHS/REACH compliance. Documentation references include the CE declaration and the RoHS/REACH information with dates in 2025. This ensures regulatory readiness and smoother audits for regulated industries.
EA1910 supports reference depths of 400–1000 mm and includes two mounting plates, offering flexible compatibility with IS2 enclosures and common distribution-board mounting accessories. The kit’s kit-preassembled design reduces compatibility issues and simplifies integration with existing ABB automation components.
The product net weight is 43.360 kg with a package weight around 44.240 kg, reflecting a sturdy but manageable assembly. Plan for two technicians for safe handling, use appropriate lifting gear, and leverage the pre-assembled kit to minimize on-site handling time and mitigate vibration-related risks.
