ABB EA1912 Control and Automation Board - CE RoHS
Part Number: EA1912
Quick Summary
ABB EA1912 is a mounting-plate kit that optimizes control and automation panels for IS2 enclosure systems. Engineers often struggle with misaligned mounts and lengthy installation when upgrading automation racks; this kit solves those challenges by providing oversized mounting plates and a pre-assembled kit that aligns with standard IS2 footprints. The solution carries CE conformity, RoHS compliance, and REACH declarations, plus ETIM 8/9 classification, ensuring regulatory readiness across European operations. By simplifying installation and improving mechanical rigidity, it delivers faster commissioning and reduced field labor. The combination of robust galvanized-steel construction and a precise fit translates to improved panel reliability, easier serviceability, and lower total cost of ownership for mid- to large-scale automation projects.
Product Information
Extended Description

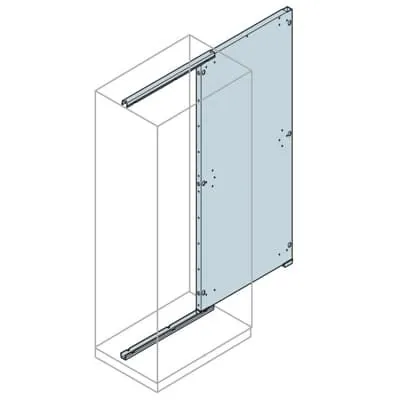

EA1912 ABB: Oversized back plates+tracks 1800x1200mm (HxW)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
2. Mounting Plates
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B320
Material
Galvanized Steel sheet
Options Provided
2. Oversized mounting plates
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1193 mm
Product Net Height
1698 mm
Product Net Depth / Length
45 mm
Product Net Weight
51.360 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1800 mm
Reference Width
1200 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
52.400 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000213 - Mounting plate for distribution board
ETIM 9
EC000213 - Mounting plate for distribution board
eClass
V11.1 : 27400639
Object Classification Code
U
Standards
See code for structure
Feature: Oversized mounting plates included. Business Impact: Greater alignment flexibility reduces rework and speeds panel assembly. Application: IS2 enclosure upgrades and new automation installations. Feature: Galvanized steel construction. Business Impact: Enhanced corrosion resistance and durability in harsh industrial environments. Application: Manufacturing floors, process plants, and outdoor-rated installations. Feature: Kit | Pre assembled mounting type. Business Impact: Faster on-site setup and minimized field wiring disruption. Application: Retrofit projects and modular control room builds. Feature: Defined reference depths and dimensions (1800x1200 mm reference, product net width 1193 mm, height 1698 mm, depth 45 mm). Business Impact: Precise fit with standard IS2 footprints reduces integration risk. Application: Customizable enclosure configurations and scalable control panels. Feature: Regulatory compliance and documentation (CE, RoHS, REACH, ETIM/ECLASS). Business Impact: Simplifies audits and procurement with traceable certifications. Application: Compliance-heavy deployments and multinational operations. Feature: Installation documentation (1STM604121R0006). Business Impact: Clear assembly guidance minimizes training time and errors. Application: Technician onboarding and field servicing.
Get a Quick Quote for a ABB EA1912
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EA1912?
Enquire Now
FAQs
Yes. EA1912 is specifically designed for IS2 Enclosures for Automation and uses the oversized mounting plates included in the kit. It supports pre-assembled mounting, enabling quick integration with standard IS2 footprints and multiple depth references to fit 400–1000 mm configurations, reducing site work and misalignment during installation.
Key specifications include Product Net Width 1193 mm, Product Net Height 1698 mm, Product Net Depth 45 mm, and Product Net Weight 51.360 kg (52.400 kg gross). Reference Depth/Length options span 400–1000 mm with a Reference Height of 1800 mm and Reference Width of 1200 mm, enabling precise planning for large automation panels.
EA1912 is ideal for manufacturing, process automation, and distribution environments where IS2 enclosure systems are used. Its galvanized steel construction and pre-assembled mounting kit support robust, reliable control panels in demanding environments, with easy integration into IS2 enclosure workflows.
EA1912 carries a CE Declaration of Conformity, RoHS information with RoHS Date 20250108, and a REACH declaration (including REACH Information). It is categorized for WEEE as Product Not in WEEE Scope, and aligns with ETIM 8/9 EC000213 and eClass V11.1 27400639 for standardized procurement and compatibility.
The pre-assembled kit with oversized mounting plates reduces on-site assembly, aligning quickly with IS2 enclosures while improving mechanical rigidity. Galvanized steel enhances durability, lowering maintenance intervals, and documented installation guidance (1STM604121R0006) accelerates technician training, delivering measurable reductions in commissioning time and total cost of ownership.
