ABB EA1916 Control and Automation Board - CE Certified
Part Number: EA1916
Quick Summary
ABB EA1916 is a control and automation board designed for IS2 enclosures in automation projects. Engineers frequently struggle with mounting plate compatibility, space constraints, and time-consuming assembly that delay commissioning. This model carries CE conformity, RoHS compliance (RoHS Date 20250108), and REACH declarations to support regulatory warranty and risk mitigation. With two oversized back plates and a pre-assembled mounting kit, it delivers precise alignment and quick installation. The galvanized steel construction ensures durability in demanding environments, while its IS2 enclosure compatibility keeps your panel strategy consistent. By reducing procurement complexity and accelerating on-site assembly, EA1916 delivers measurable cost and schedule savings for mid- to large-scale automation deployments.
Product Information
Extended Description

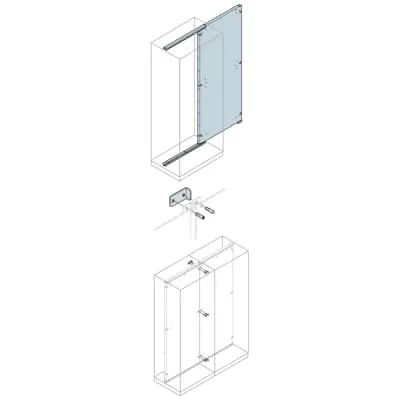

EA1916 ABB: N° 2 oversized back plates. W=800mm + track + joining kit 1800x1600mm (HxW)
Suitable For
IS2 Enclosures for Automation
Suitable for Product Class
Control and Automation Board
Accessory Type
2. Mounting Plates
Mounting Type
Kit | Pre assembled
Product Type
5B5B30B320
Material
Galvanized Steel sheet
Options Provided
2. Oversized mounting plates
Remarks
ETIM
RoHS Information
RoHS information
RoHS Date
20250108
REACH Declaration
REACH declaration
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20250108
WEEE Category
Product Not in WEEE Scope
Environmental Information
IS2 Enclosures Technical Catalogue 2024
Product Net Width
1600 mm
Product Net Height
1700 mm
Product Net Depth / Length
1600 mm
Product Net Weight
77.740 kg
Reference Depth/Length
400 mm | 500 mm | 600 mm | 800 mm | 1000 mm
Reference Height
1800 mm
Reference Width
1600 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
77.740 kg
Declaration of Conformity - CE
Declaration of Conformity IS2
Instructions and Manuals
1STM604121R0006
Data Sheet, Technical Information
IS2 Enclosures Technical Catalogue 2024
ETIM 8
EC000213 - Mounting plate for distribution board
ETIM 9
EC000213 - Mounting plate for distribution board
eClass
V11.1 : 27400639
Object Classification Code
U
Standards
See code for structure
Two oversized mounting plates accompany the EA1916, designed to align precisely with IS2 enclosures for automation. This reduces field trimming and misalignment, cutting commissioning time by hours and minimizing rework during panel installs. The kit is shipped pre-assembled, delivering faster installation, a standardized interface, and reduced labor costs for systems integrators. Galvanized steel sheet construction provides corrosion resistance and long service life in harsh environments, ensuring reliability in manufacturing plants and process facilities. With dimensions and reference depths including 1600 mm width, 1700–1800 mm height, and 400 mm depth, it simplifies space planning and enclosure layout across multiple panels. Regulatory compliance data—RoHS, REACH, and CE declarations—minimize risk and support audit readiness. Documentation and standards, including ETIM, eClass, and installation manuals, streamline procurement and engineering workflows.
Get a Quick Quote for a ABB EA1916
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB EA1916?
Enquire Now
FAQs
Yes. EA1916 is specifically designed as a mounting kit for IS2 Enclosures for Automation, including two oversized mounting plates and a pre-assembled kit. It ensures a precise fit, reduces field work, and accelerates panel commissioning when paired with ABB IS2 enclosures.
Key specs include a width of 1600 mm, height around 1700–1800 mm, depth of 400 mm, weight 77.740 kg, galvanized steel sheet construction, and a kit-based, pre-assembled mounting solution with two oversized plates. It is suitable for IS2 Enclosures for Automation and supports 5B5B30B320 product type classifications.
Yes. EA1916 carries a Declaration of Conformity CE and RoHS compliance (RoHS Date 20250108) along with a REACH declaration. The REACH information indicates no substances above 0.1 mass percentage, aligning with regulatory and sustainability goals for industrial panels.
EA1916 is ideal for automation control panels and distribution boards inside IS2 Enclosures for Automation. Its mounting plates and pre-assembled kit design support rapid deployment in manufacturing, packaging, and process industries, improving layout consistency and panel reliability.
Guidance is available in the IS2 Enclosures Technical Catalogue 2024 and the 1STM604121R0006 manual. Compliance references include ETIM EC000213, eClass V11.1 27400639, and CE declarations, facilitating procurement, QA, and maintenance planning.
